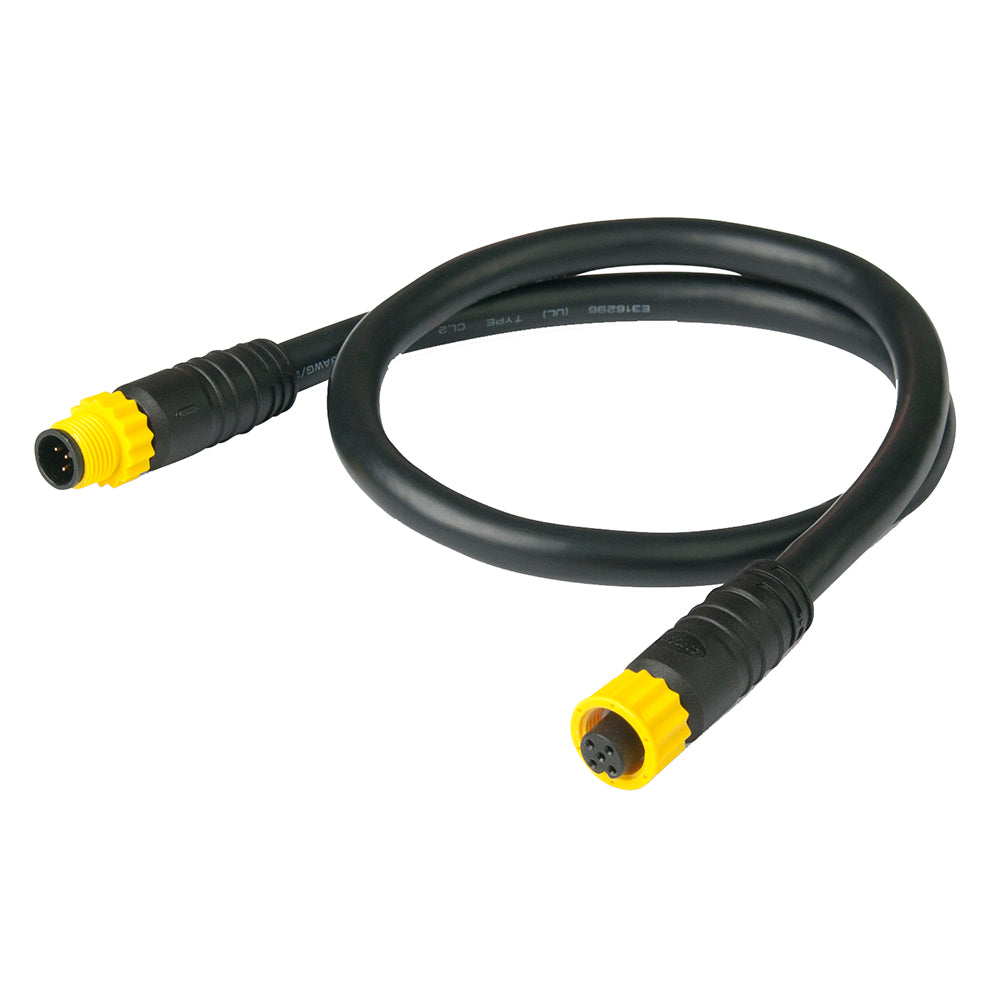

Ancor NMEA 2000 Backbone Cable - 0.5M [270001]

NMEA 2000 Backbone Cable - 0.5M

Ancor's NMEA 2000 Approved Backbone Cables offer connection to an NMEA 2000 tee connector. The yellow couplers connect to the corresponding Ancor tees creating a simplified, color coded network installation. The backbone cables are available in four lengths from 0.5 meter (1.6 feet) to 10 meters (32.8 feet) to cover a wide variety of applications.

Features:

• Color coded for easy installation and component identification
• Large 18 AWG power conductors to reduce voltage drop and provide better reliability for critical backbone cables
• NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Connection Gender: Male-Female
• Data Interface: NMEA 2000
• Cable Length (Meters): 0.5m
• NMEA 2000 Connectors: Backbone/Drop Cables
• Box Dimensions: 2"H x 4"W x 7"L WT: 0.2 lbs
• UPC: 091887982220
