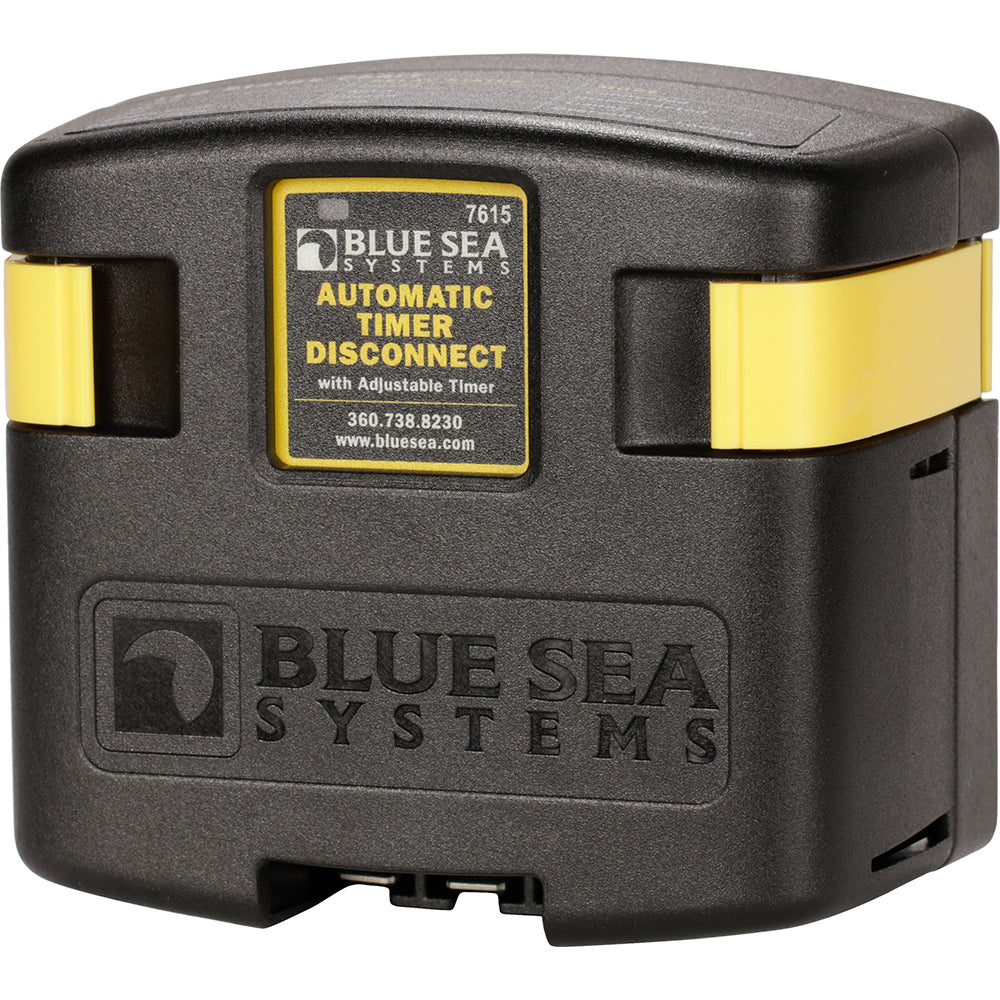

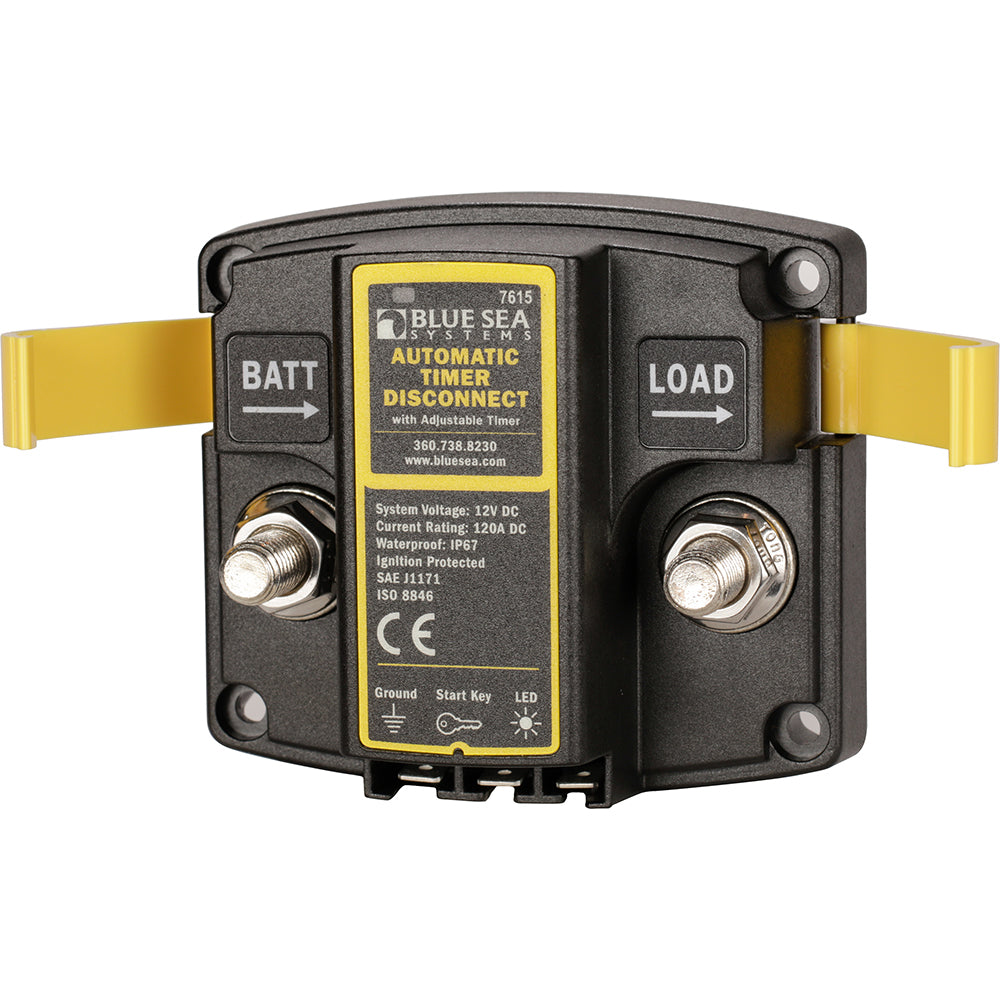

Name: Blue Sea 7615 ATD Automatic Timer Disconnect [7615]
Brand: Blue Sea Systems
SKU: FT-64363
Price: 135.99 USD
Availability: InStock

1/2

Blue Sea 7615 ATD Automatic Timer Disconnect [7615]

Authorized Dealer

Only 2 Left

$135.99

$135.99 $164.99

Free Shipping

Enter ZIP for delivery date

Order now Ships next business day

Calculating shipping... to ...

Calculating delivery date...

Checking dispatch times...

Free Shipping Orders over $100

Secure Checkout SSL Encrypted

Manufacturer Warranty Full Warranty Included

Questions before ordering?

Text our installation team for help confirming fitment, wiring, and compatibility before you buy.

Text support 727-351-2251

Text Our Team

ATD Automatic Timer Disconnect

Adjustable time or voltage based battery disconnect automatically shuts off devices to preserve battery power

12V signal triggers relay to connect battery power to devices. When signal is removed the timer is activated and will disconnect devices after a preset time
Disconnect can be triggered based on time, low voltage, or removal of 12V signal
Low voltage will disconnect if time hasn_t been reached to preserve battery power
Time and voltage options can be turned off to allow 12V signal based disconnect
Clip-on cover insulates terminal connections
One-piece stainless flange nuts ensure safe and secure connections
Integrated LED indicates status

Specifications:

Nominal Voltage:12V DC
Amperage Operating Current: 175mA(Combine / 15mA(Open)
Continuous Rating:120A
Intermittent Duty: 210
Terminal Stud Size: 3/8"-16 (M10)
Time Range: 15min-4hrs
