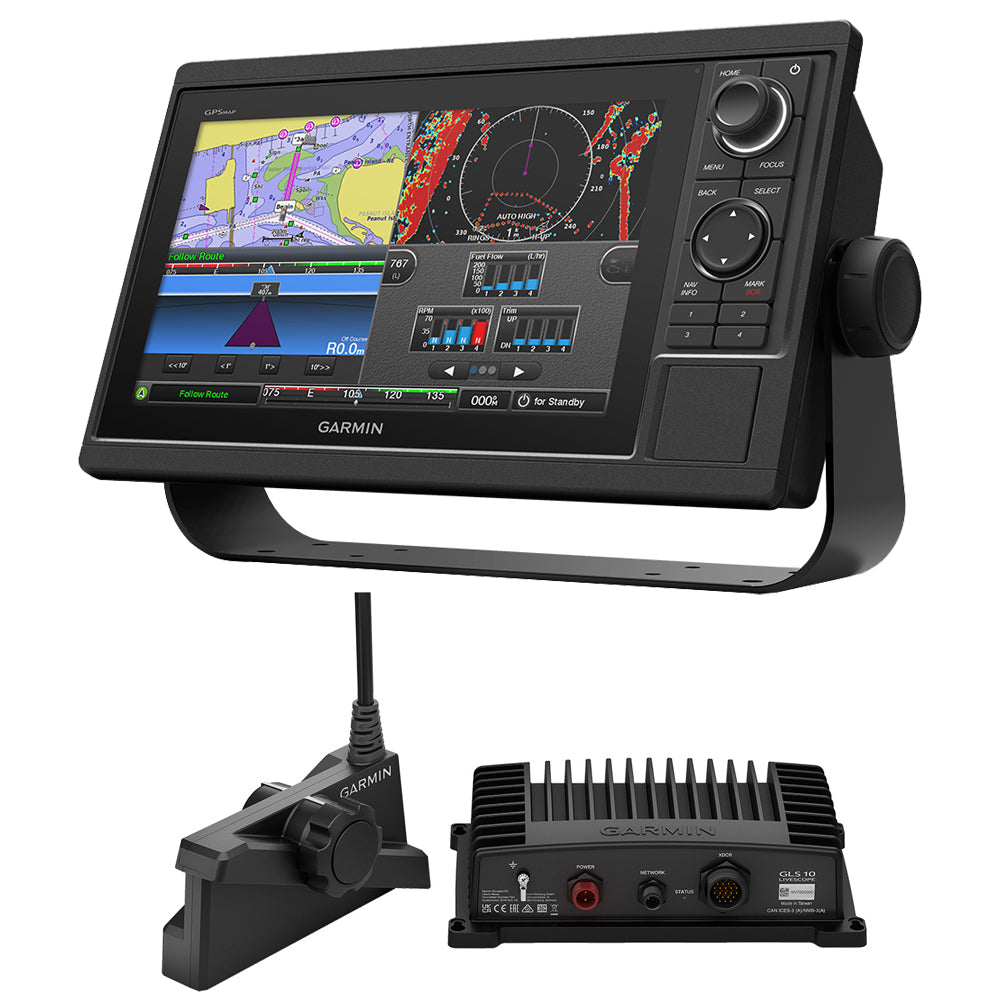

Garmin GPSMAP 1022 LiveScope Plus Bundle w/LVS34 Transducer [010-01740-00/LVS34]

• 10-inch color display with keypad interface and multifunction control knob
• High-sensitivity internal 10 Hz GPS and GLONASS receiver
• Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
• Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features

GPSMAP 1022 is designed for cruisers, sailors, and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

• Garmin helm upgrades and replacement installs
• Boaters matching this exact part number or product package
• Marine electronics systems using compatible Garmin networking and accessories
• Customers who want a clean, properly matched display, sonar, charting, or accessory setup

In The Box

• GPSMAP 1022 chartplotter
• Power/data cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 m)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers

GPSMAP® 1022 Keyed Networking Chartplotter - No Sonar

10-inch Chartplotter Is All-in-1 Solution.

LiveScope™ Plus System with GLS 10™ & LVS34 Transducer

THE BEST OF THE BEST JUST GOT BETTER

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images, and better target separation.

GPSMAP® 1022 Keyed Networking Chartplotter - No Sonar

10-inch Chartplotter Is All-in-1 Solution.

Upgrade to Our Best Maps on the Water

Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g2 HD, or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance¹ and other great features.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start, and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data, and more.

GPSMAP® 1022 Keyed Networking Chartplotter - No Sonar

10-inch Chartplotter Is All-in-1 Solution.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras, and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS, and other sensors.

• Match the exact model number and MPN before ordering.
• Confirm transducer plug, network type, dash cutout, and mounting style when replacing an older unit.
• Some charting, satellite, app, mapping, or connected features may require compatible equipment or subscriptions.
• Auto Guidance and charting features are for planning only and do not replace safe navigation practices.

Connections

• Garmin Marine Network™ Ports: 2
• NMEA 2000® Port: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Video Input Ports: 1 BNC
• Video Output Ports: None
• Wireless Connectivity: Yes

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Specifications

• Cartography Brand: Garmin Navionics+
• Included Transducer: LVS-34
• Screen Size: 10"
• Touchscreen: No
• Transducer Included: Yes
• Box Dimensions: 8"H x 10"W x 14"L WT: 19.9 lbs
