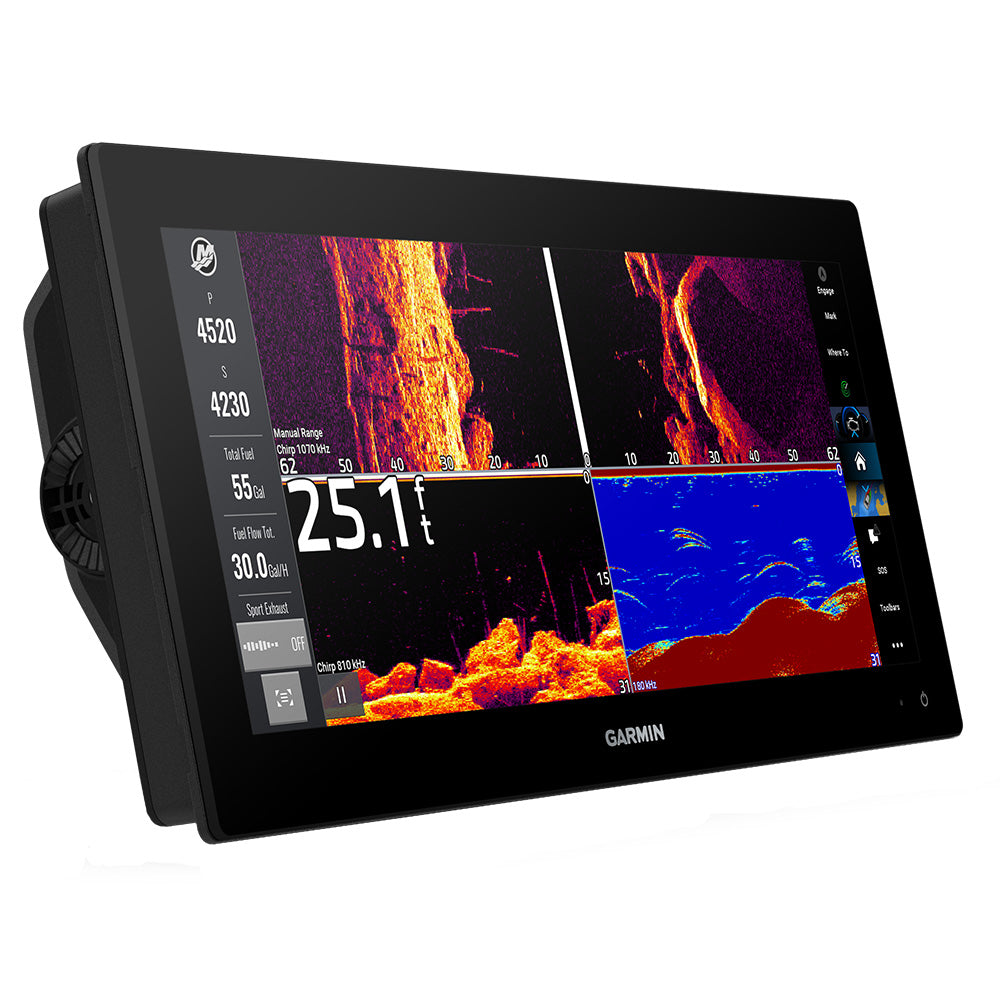

Garmin GPSMAP 1543xsv Ultrawide Combo GPS/Fishfinder GN+ [010-03855-01]

• Ultrawide in-plane switching (IPS) 15" display fits a variety of helm layouts, including "floating display" configurations
• Connect to compatible third-party devices with digital switching and Onehelm™ integrations
• Easily build your marine system by using our advanced network connectivity
• Navigate waters confidently with preloaded Garmin Navionics+ charts
• See below your boat with built-in sonar capabilities
• Manage your marine experience from nearly anywhere 1

• Garmin helm upgrades and replacement installs
• Boaters matching this exact part number or product package
• Marine electronics systems using compatible Garmin networking and accessories
• Customers who want a clean, properly matched display, sonar, charting, or accessory setup

What's In The Box?

• GPSMAP 1543xsv ultrawide chartplotter
• microSD™ card preinstalled
• Power cable
• Thin flush mount kit with gasket
• Protective cover
• 8-pin transducer to 12-pin sounder adapter cable
• 2 m backbone/drop cable and T-connector for NMEA 2000® Network
• Documentation

GPSMAP® 1543xsv Ultrawide Combo GPS/Fishfinder GN+

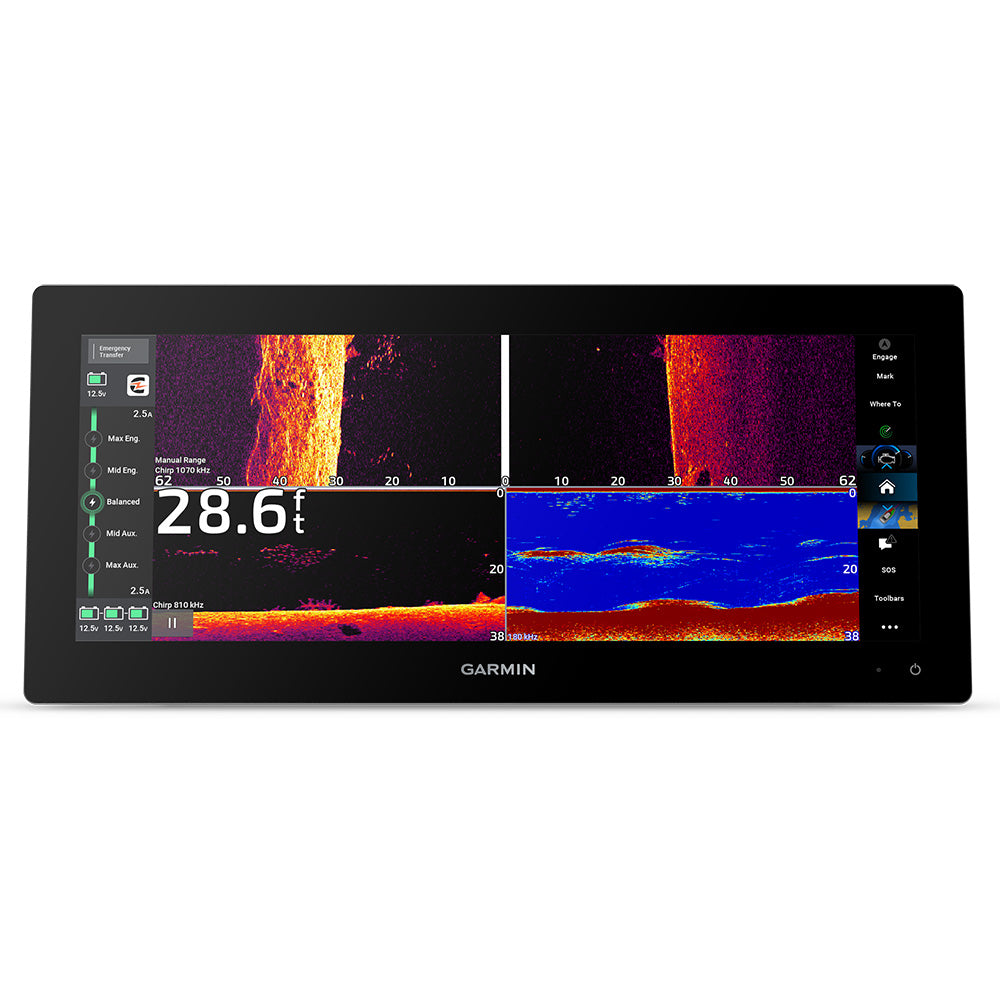

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

Traditional and Scanning Sonar Support

Get built-in support for 1 kW CHIRP traditional sonar for superior target separation. Plus, Ultra High-Definition ClearVü™ and SideVü™ scanning sonars feature vivid, high-contrast color palettes to help distinguish fish from structure (transducer required; sold separately).

Live Sonar Support

Pair with Panoptix™ or LiveScope™ easy-to-interpret live sonar (transducer required; sold separately) to see all around your boat in real time.

Sonar Features

• Displays Sonar: Yes
• Power Output: 1 kW
• Traditional Sonar (Dual Frequency/Beam): Yes
• ClearVÜ: Yes
• SideVÜ: Built-in 260/455/800/1000/1200 kHz
• Panoptix™ Sonar: Yes
• Livescope: Yes

GPSMAP® 1543xsv Ultrawide Combo GPS/Fishfinder GN+

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

Preloaded Mapping

Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+™ technology 2 and a 1-year subscription for downloadable daily updates and more on select models.

Optional Charts and Maps

Bring premium chart features to your chartplotter with an optional upgrade to a Garmin Navionics Vision+™ subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery, and more.

Garmin Sailassist™ Sailing Features

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, and more.

Garmin Marine Network

If you have multiple compatible Garmin devices on your boat, you can share information, such as maps, user data, radar, and IP camera video, among them.

NMEA 2000® and NMEA 0183 Networks

Connect to compatible autopilots, digital switching, weather, the Fusion® audio system, media, VHF, AIS, and more from one screen.

Activecaptain® App

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications (when paired with your smartphone), software updates, Helm™ app, Garmin Quickdraw™ Community data, and more 1 .

Integrated Ant® Technology

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments, and wireless remote controls.

Engine Connectivity

You can connect your chartplotter to different engines, including select Yamaha® and Mercury® engines.

• Match the exact model number and MPN before ordering.
• Confirm transducer plug, network type, dash cutout, and mounting style when replacing an older unit.
• Some charting, satellite, app, mapping, or connected features may require compatible equipment or subscriptions.
• Auto Guidance and charting features are for planning only and do not replace safe navigation practices.

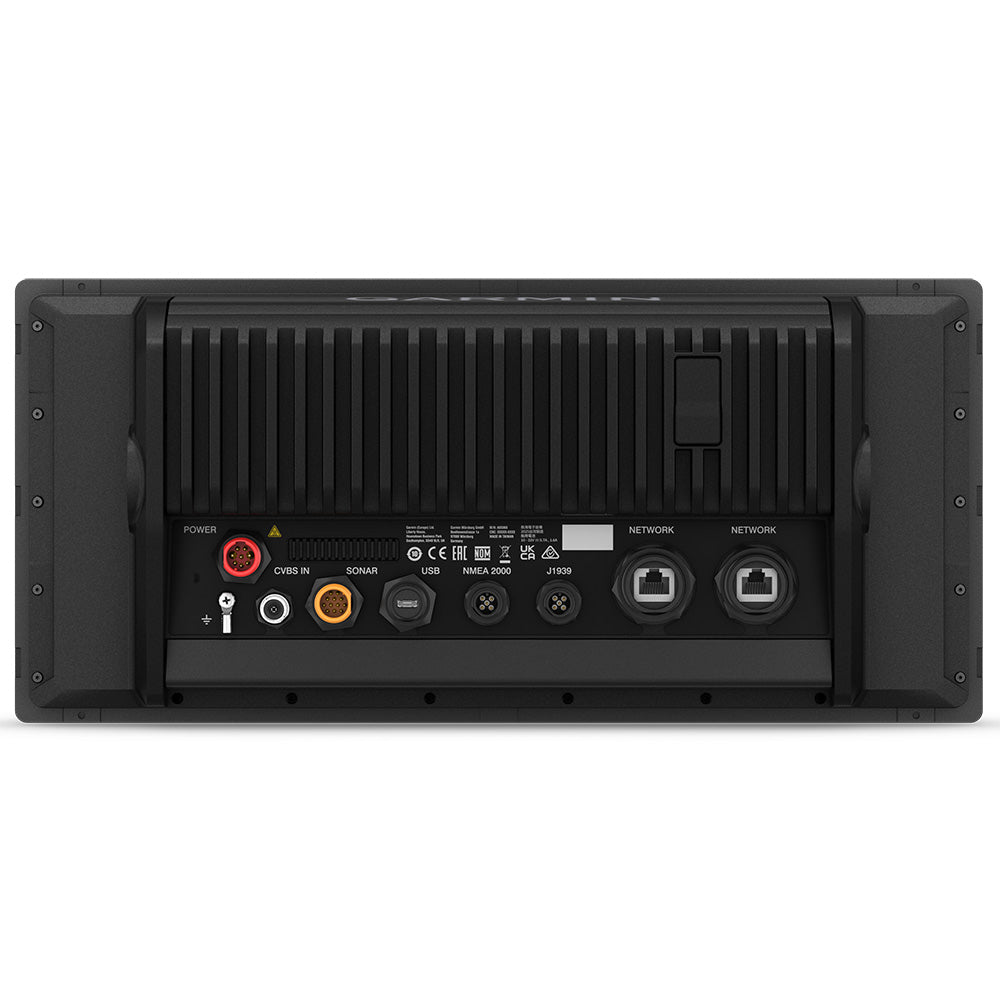

Connections

• NMEA 2000® Ports: 1
• NMEA 0183 Input (RX) Ports: 1
• NMEA 0183 Output (TX) Ports: 1
• Video Input Ports: 1 (BNC composite)
• J1939 Ports: 1
• Garmin Marine Network Ports: 2
• 12-Pin Transducer Ports: 1
• USB Ports: Yes

1Requires ActiveCaptain app on your smartphone paired to your chartplotter

2Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

Specifications

• Cartography Brand: Garmin Navionics+
• Screen Size: 15"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 8"H x 11"W x 20"L WT: 13.9 lbs
• UPC: 753759345747
