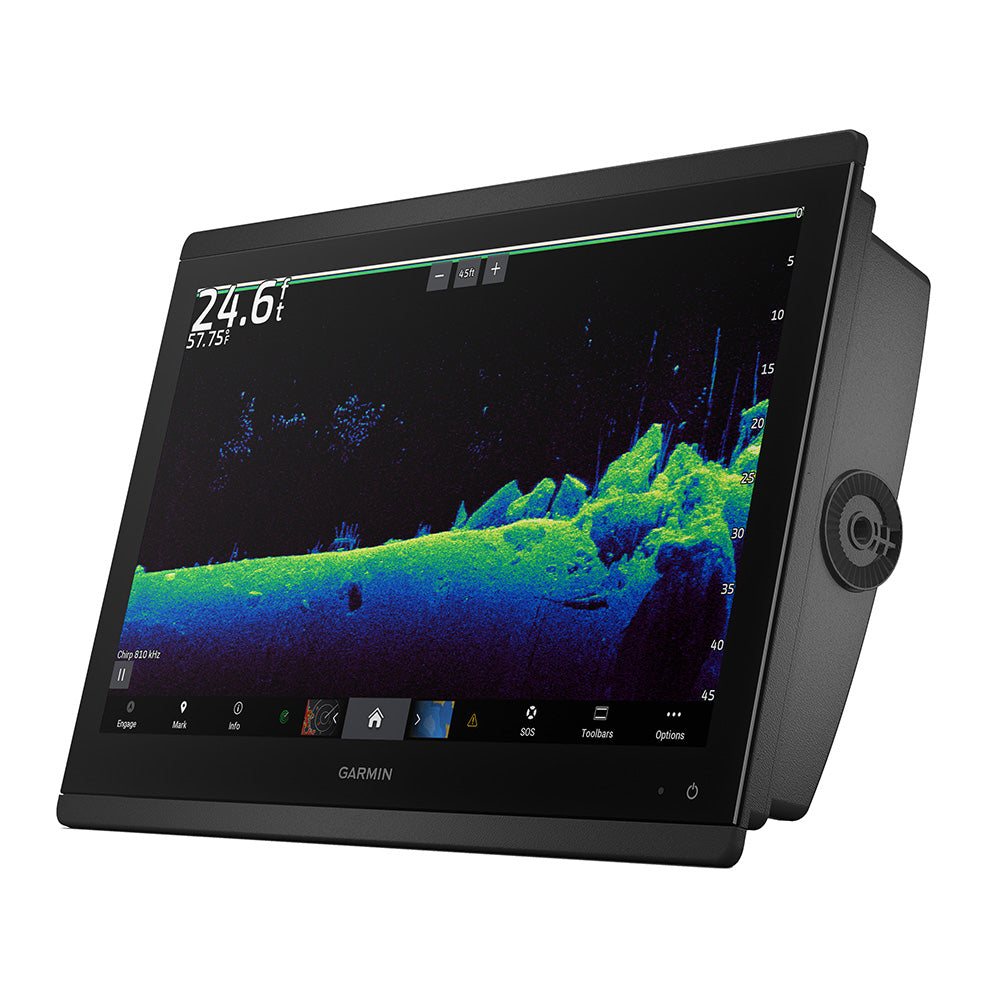

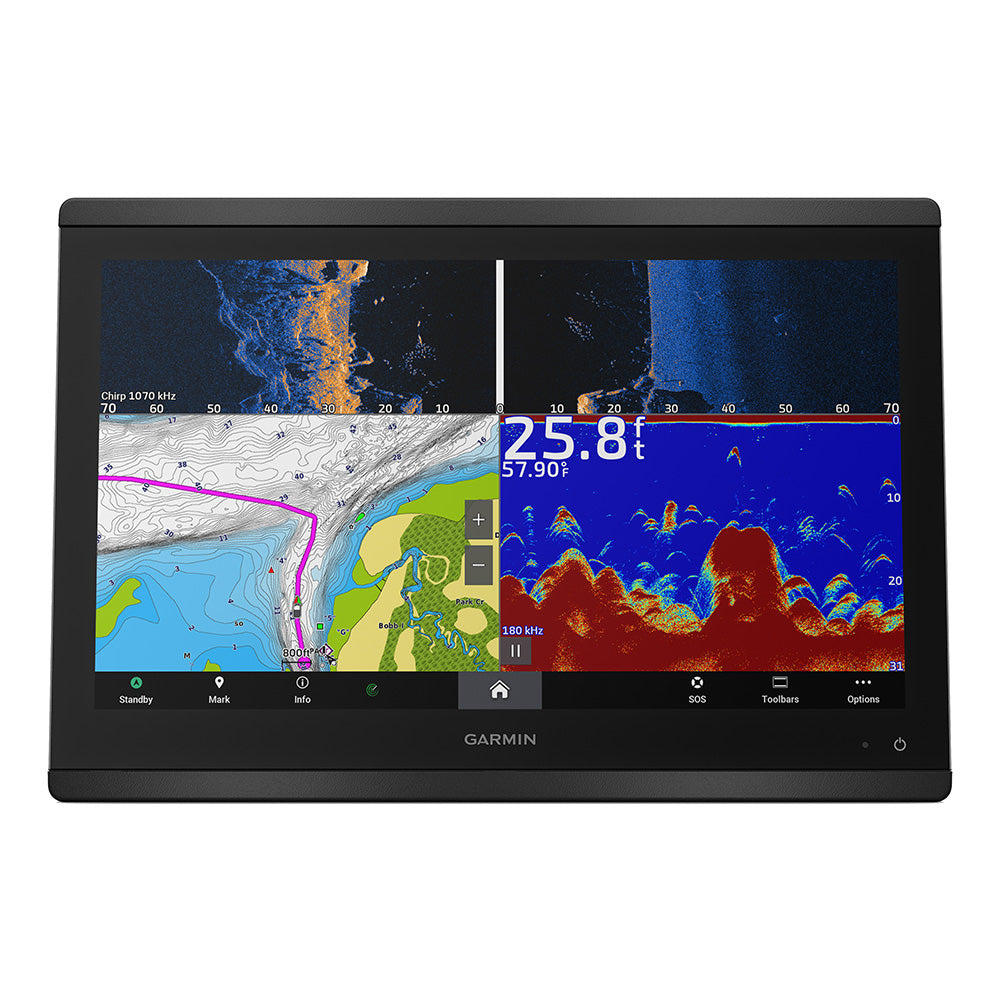

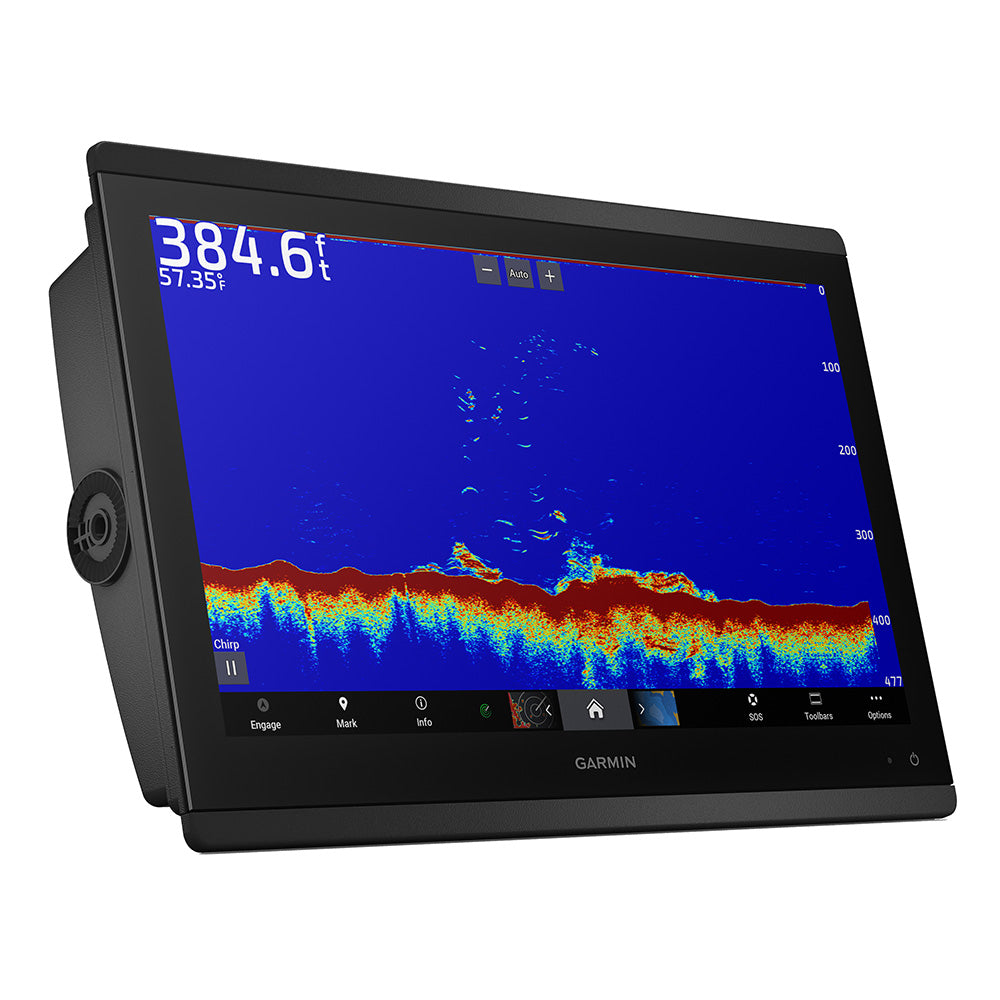

Garmin GPSMAP 8616xsv Combo GPS/Fishfinder GN+ [010-02093-51]

• Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.
• Navigate confidently with built-in Garmin Navionics+™ inland and coastal mapping 1 .
• Easily build your marine system using the best of network connectivity.
• See below and around your boat with built-in sonar capabilities (transducers sold separately).
• From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.
• With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need.

• Garmin helm upgrades and replacement installs
• Boaters matching this exact part number or product package
• Marine electronics systems using compatible Garmin networking and accessories
• Customers who want a clean, properly matched display, sonar, charting, or accessory setup

In The Box

• GPSMAP 8616xsv
• Power cable
• NMEA 2000® drop cable
• NMEA 2000 T-connector
• Flush mount kit
• Sun cover
• Trim piece snap covers
• Documentation

GPSMAP® 8616xsv Combo GPS/Fishfinder GN+

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

• Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.
• Navigate confidently with built-in Garmin Navionics+™ inland and coastal mapping 1 .
• Easily build your marine system using the best of network connectivity.
• See below and around your boat with built-in sonar capabilities (transducers sold separately).
• From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.
• With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need.

Traditional and Scanning Sonar Support

Get built-in support for 1-kW Dual-Channel CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (requires transducer, sold separately).

Live Sonar Support

Pair your chartplotter with Garmin live sonar options (transducer sold separately) to see all around your boat in real time.

GPSMAP® 8616xsv Combo GPS/Fishfinder GN+

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

• Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.
• Navigate confidently with built-in Garmin Navionics+™ inland and coastal mapping 1 .
• Easily build your marine system using the best of network connectivity.
• See below and around your boat with built-in sonar capabilities (transducers sold separately).
• From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.
• With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need.

Garmin Sailassist™ Sailing Features

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more.

Preloaded Mapping

Experience unparalleled coverage and detail with built-in Garmin Navionics+™ integrated coastal and inland mapping that includes Auto Guidance+™ technology3 and a 1-year subscription for downloadable daily updates and more on select chartplotters.

Optional Charts and Maps

Bring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision+™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.

Garmin Marine Network

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.

NMEA 2000® and NMEA 0183 Networks

Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

Activecaptain® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the all-in-one mobile app for access to the OneChart™ feature, smart notifications3 , software updates, Helm, Garmin Quickdraw™ Community data and more.

Integrated Bluetooth® and ANT Technologies

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

Onehelm™ Feature

This feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.

• Match the exact model number and MPN before ordering.
• Confirm transducer plug, network type, dash cutout, and mounting style when replacing an older unit.
• Some charting, satellite, app, mapping, or connected features may require compatible equipment or subscriptions.
• Auto Guidance and charting features are for planning only and do not replace safe navigation practices.

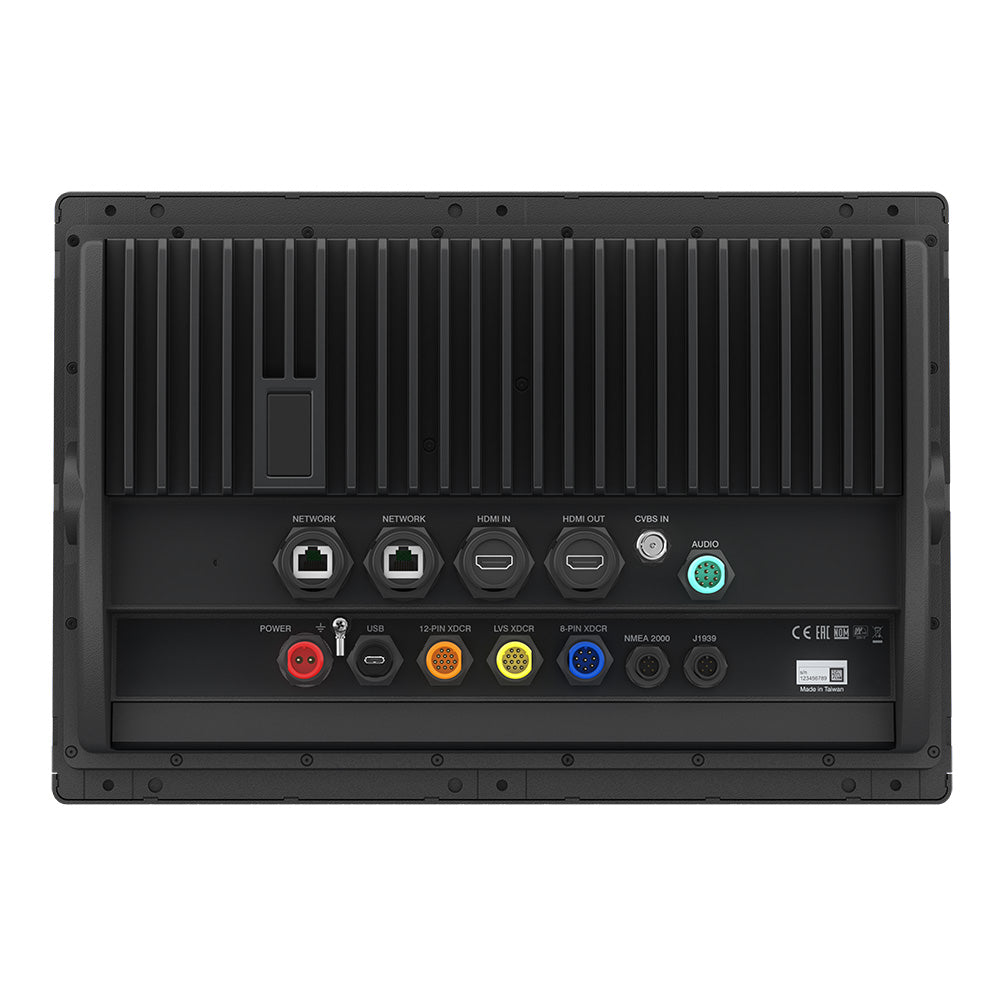

Connections

• NMEA 2000® Ports: 1
• Connections NMEA 0183 Input Ports: 1
• NMEA 0183 Input (TX) Ports: 1
• Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
• Video Output Ports: 1 HDMI
• J1939 Ports: 1
• Garmin Marine Network Ports: 2
• 8-Pin Transducer Port: Yes

2 Requires ActiveCaptain app on your compatible smartphone paired to a compatible GPSMAP chartplotter

3 Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

Specifications

• Cartography Brand: Garmin Navionics+
• Screen Size: 16"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 9"H x 14"W x 20"L WT: 15.7 lbs
• UPC: 753759285449
