Garmin GPSMAP 9213 Premium Chartplotter w/Garmin Navionics+ [010-03176-01]

• Premium IPS sunlight-readable touchscreen display
• Up to 7 times faster processing power than previous generations
• Get clarity like never before on a 4K display
• Preloaded Garmin Navionics+™ charts with Auto Guidance+™ technology 1
• Gigabit speeds on the Garmin Bluenet™ network
• Network with multiple chartplotters, cameras, and more

• Garmin helm upgrades and replacement installs
• Boaters matching this exact part number or product package
• Marine electronics systems using compatible Garmin networking and accessories
• Customers who want a clean, properly matched display, sonar, charting, or accessory setup

What's In The Box?

• GPSMAP 9213 premium chartplotter
• Power cable
• Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® Network
• Bail mount with knobs
• Flush mount kit
• Protective cover
• Trim piece snap covers
• Documentation

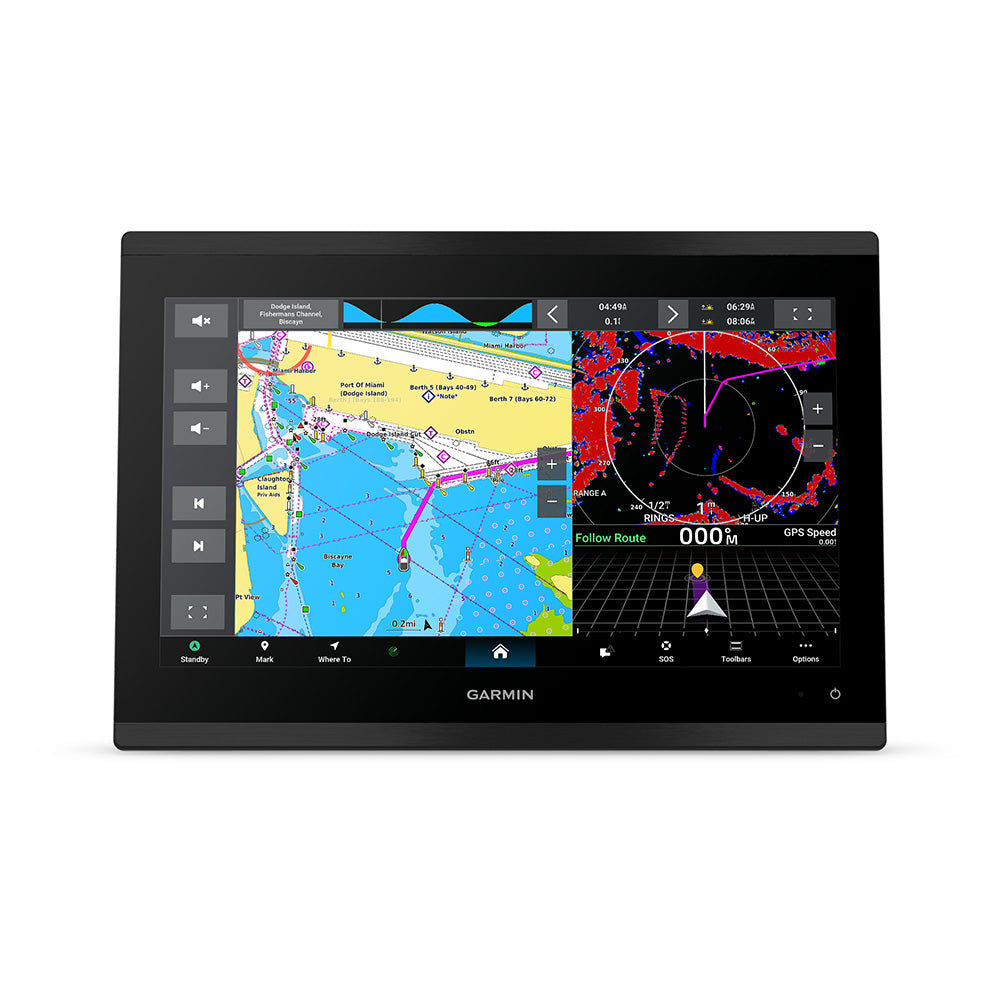

GPSMAP® 9213 Premium Chartplotter with Garmin Navionics+™

It’s the integrated 4K touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials.

Premium Chartplotter

The 4K IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.

Garmin Sailassist™ Sailing Features and Sailing Polars

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, and more. Plus, the polar table shows key data, so you know whether you need to adjust sail trim.

Maps & Memory

• Accepts Data Cards: 2 microSD™ cards (on rear of product)
• Supports USB Card Reader: Yes
• Waypoints: 5,000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Garmin Bluenet Network

Build extensive networks with multiple chartplotters, cameras, radars, and sonars — and enjoy gigabit-speed

• Match the exact model number and MPN before ordering.
• Confirm transducer plug, network type, dash cutout, and mounting style when replacing an older unit.
• Some charting, satellite, app, mapping, or connected features may require compatible equipment or subscriptions.
• Auto Guidance and charting features are for planning only and do not replace safe navigation practices.

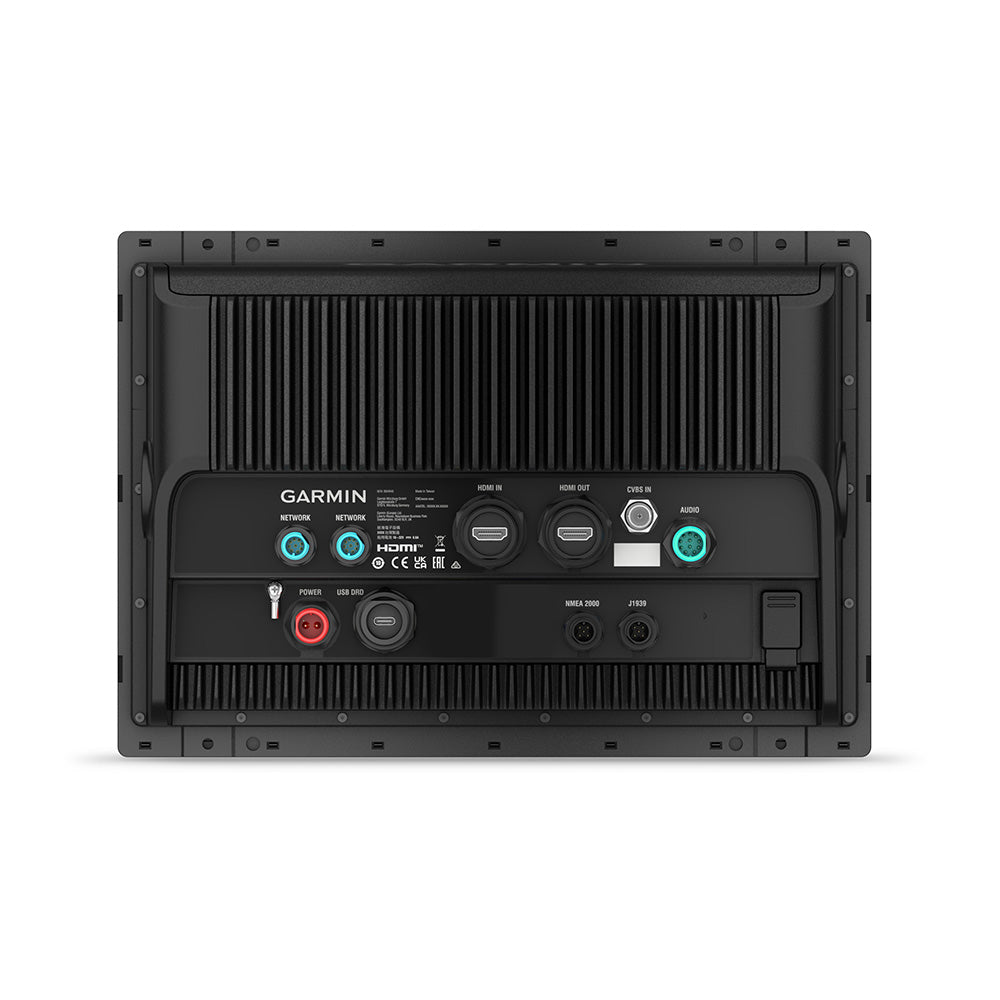

Connections

• NMEA 2000® Ports: 1
• NMEA 0183 Input (RX) Ports: 1
• NMEA 0183 Output (TX) Ports: 1
• Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
• Video Output Ports: 1 HDMI
• J1939 Ports: 1
• Garmin Bluenet Networks Ports: 2
• USB Ports: yes (1x USB-C)

1Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

Specifications

• Cartography Brand: Garmin Navionics+
• Internal/External Antenna: Internal
• Screen Size: 13"
• Touchscreen: Yes
• Box Dimensions: 9"H x 12"W x 18"L WT: 17.6 lbs
• UPC: 753759343538
