JL Audio Marine Bundle - Fusion MS-RA210, XDM400/4 & 4 M3 Speakers
Choose Your Speakers

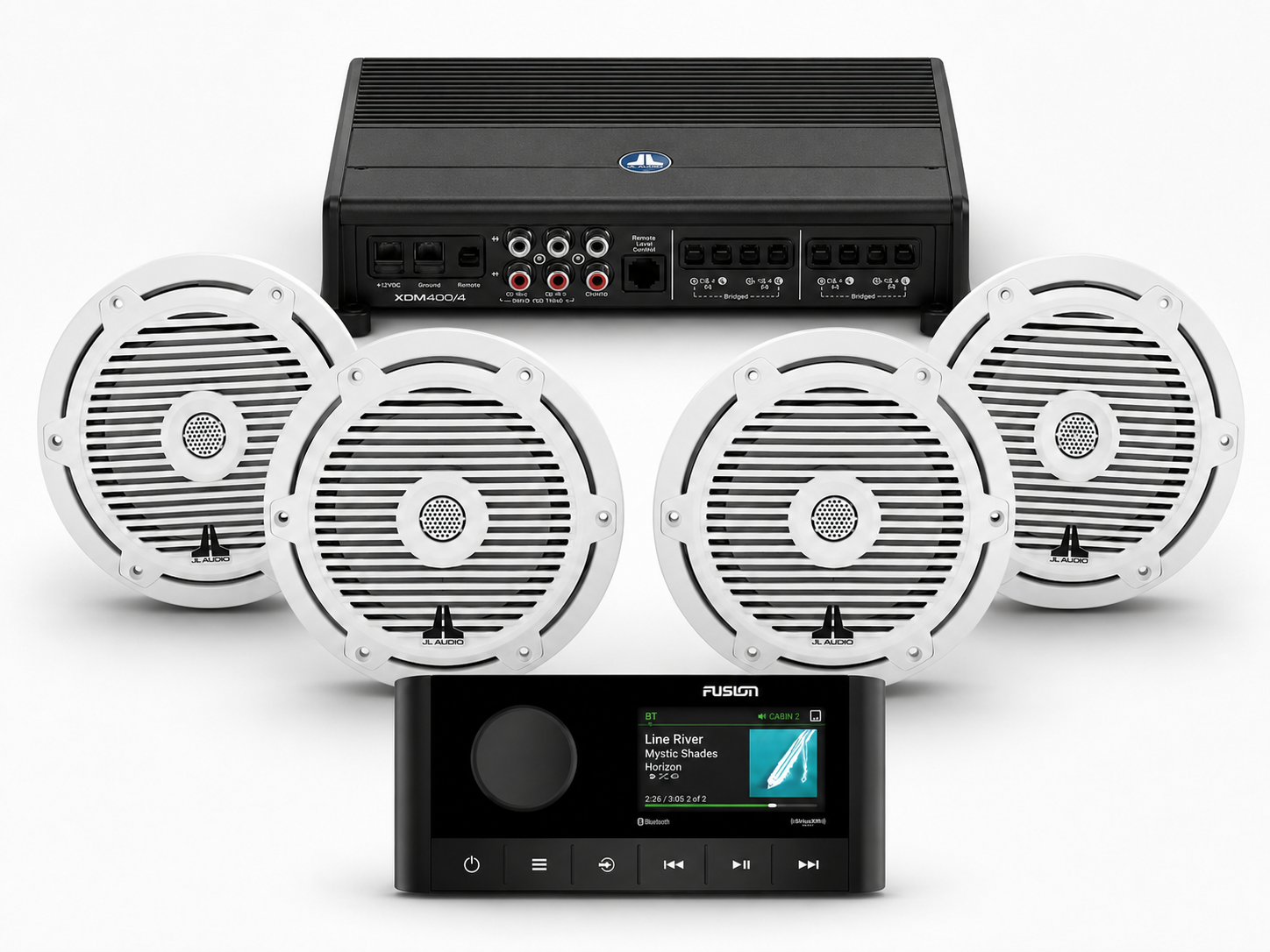

Marine Audio Bundle
Fusion MS-RA210 Bundle with JL Audio XDM400/4 & M3 Speakers
Upgrade your boat with a Fusion MS-RA210 marine stereo, dedicated JL Audio XDM400/4 amplifier power, and 4 JL Audio M3 marine speakers in your selected 6.5", 7.7", grille, or RGB style.
Stereo
Fusion MS-RA210
Compact marine stereo with Bluetooth streaming, Fusion DSP, 2-zone control, and a 2.7" color display.
View features
- Bluetooth music streaming for easy phone pairing
- Fusion DSP for cleaner, optimized sound
- Multi-Zone control for 2 independent audio areas
- 2.7" optically bonded full-color LCD display
- Fusion-Link control through compatible devices
- NMEA 2000 compatible for supported marine integration
| Model | Fusion MS-RA210 |
| MPN | 010-02250-00 |
| Peak Power | 200W max |
| Zones | 2 audio zones |
| Connectivity | Bluetooth, USB, AUX, AM/FM |
| Display | 2.7" optically bonded color LCD |
| Integration | Fusion-Link / NMEA 2000 compatible |
| Water Rating | IPX6 / IPX7 front face when properly installed |
Amplifier
JL Audio XDM400/4
Compact 4-channel marine amplifier that gives the M3 speakers clean, efficient power.
View features
- 4-channel full-range marine amplifier
- NexD™ Class-D amplifier design
- 75W RMS x 4 at 4Ω — ideal for powering 4 speakers
- 100W RMS x 4 at 2Ω for flexible system layouts
- Bridgeable for future system changes
- Compact chassis for tight helm or console installs
| Model | JL Audio XDM400/4 |
| MPN | 010-03115-00 |
| Channels | 4-channel |
| Power @ 4Ω | 75W RMS x 4 |
| Power @ 2Ω | 100W RMS x 4 |
| Bridged Power | 200W RMS x 2 at 4Ω |
| Amplifier Class | NexD™ Class-D |
Speakers
4 JL Audio M3 Speakers
Two pairs of JL Audio M3 marine coaxial speakers in your selected 6.5", 7.7", grille, or RGB LED option.
View features
- 4 total JL Audio M3 marine speakers
- Choose 6.5" or 7.7" speaker size on this page
- Marine coaxial design for clean full-range sound
- Good match with the JL Audio XDM400/4 amplifier
- Available in 5 grille / RGB style choices per size
- Great for cockpit, bow, cabin, and general boat audio upgrades
| Series | JL Audio M3 |
| Quantity | 4 speakers / 2 pairs |
| Sizes | 6.5" or 7.7" depending on selection |
| Type | Marine coaxial speakers |
| 6.5" RMS Power | 60W RMS each |
| 7.7" RMS Power | 70W RMS each |
| RGB Lighting | Select Sport RGB models only |
What’s Included
- Fusion MS-RA210 marine stereo
- JL Audio XDM400/4 4-channel marine amplifier
- 4 total JL Audio M3 marine coaxial speakers — 2 pairs of your selected speaker style
Full Specs
| Product Type | Marine stereo / source unit |
| Peak Power | 200W max |
| Audio Zones | 2-zone audio control |
| Streaming | Bluetooth audio |
| Display | 2.7" optically bonded color LCD |
| Inputs | USB, AUX, AM/FM |
| Integration | Fusion-Link / NMEA 2000 compatible |
| Water Rating | IPX6 / IPX7 front face when properly installed |
| Product Type | 4-channel marine amplifier |
| Amplifier Class | NexD™ Class-D |
| Power @ 4Ω | 75W RMS x 4 |
| Power @ 2Ω | 100W RMS x 4 |
| Bridged Power | 200W RMS x 2 at 4Ω |
| Recommended Use | Powering 4 full-range marine speakers |
| Quantity | 4 speakers / 2 pairs |
| Type | Marine coaxial speakers |
| Impedance | 4Ω |
| 6.5" RMS Power | 60W RMS each |
| 6.5" Recommended Power | 20 - 120W RMS per channel |
| 6.5" Frequency | 55 Hz - 25 kHz |
| 6.5" Sensitivity | 89.5 dB |
| 7.7" RMS Power | 70W RMS each |
| 7.7" Recommended Power | 20 - 150W RMS per channel |
| 7.7" Frequency | 45 Hz - 25 kHz |
| 7.7" Sensitivity | 90.5 dB |
| Cutout | 5.00" - 5.25" / 127 - 133 mm |
| Depth | 2.78" / 71 mm |
| Outer Dia. | 6.90" / 175 mm |
| Bolt Circle | 6.13" / 156 mm |
| Cutout | 6.25" / 159 mm |
| Depth | 3.15" / 80 mm |
| Outer Dia. | 7.70" / 196 mm |
| Bolt Circle | 6.92" / 176 mm |
Why This Bundle Works
- Real amplifier power: the JL Audio XDM400/4 gives the M3 speakers dedicated power instead of relying only on stereo output.
- Clean 4-speaker layout: includes 2 pairs of the selected JL Audio M3 speaker style.
- Better source unit: the Fusion MS-RA210 adds Bluetooth, Fusion DSP, a color display, and 2-zone control.
- Selectable speaker styles: choose 6.5" or 7.7" M3 speakers with the grille or RGB style that matches your boat.
- Strong upgrade path: a clean premium setup without jumping into a larger multi-amp system.

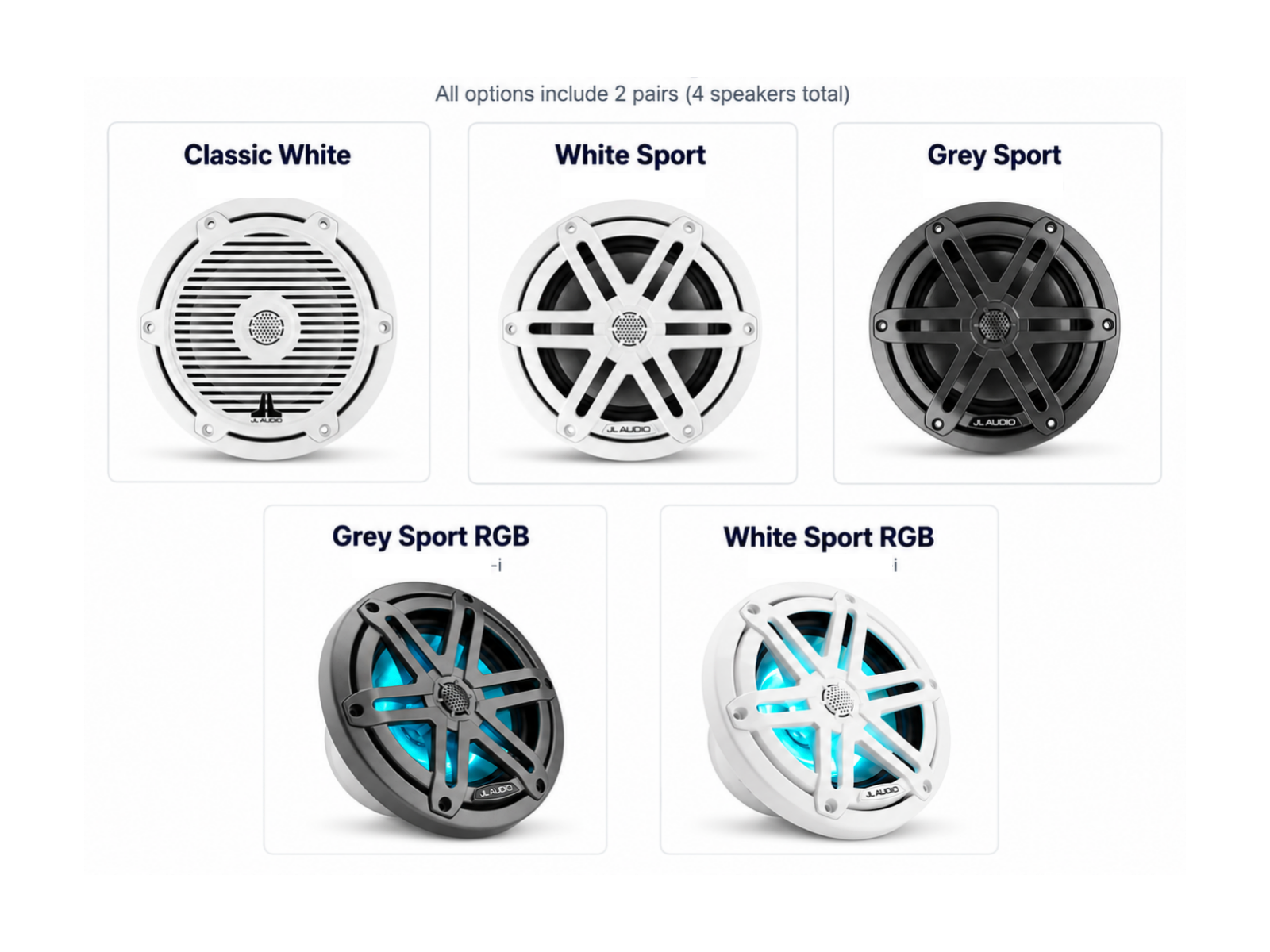

Choose Your M3 Speaker Style
Use the speaker selector on this page to choose your preferred JL Audio M3 style.
- M3 6.5" marine speakers
- M3 7.7" marine speakers
- White Classic grille style
- White Sport grille style
- Grey Metallic Sport grille style
- RGB LED Sport speaker options where available
Model Numbers & MPNs
| Item | Model / MPN |
|---|---|
| Stereo | Fusion MS-RA210 / 010-02250-00 |
| Amplifier | JL Audio XDM400/4 / 010-03115-00 |
| Option | Model / MPN |
|---|---|
| 6.5" White Classic | M3-650X-C-Gw / 010-03060-00 |
| 6.5" White Sport | M3-650X-S-Gw / 010-03063-00 |
| 6.5" Grey Sport | M3-650X-S-Gm / 010-03061-00 |
| 6.5" White Sport RGB | M3-650X-S-Gw-i / 010-03064-00 |
| 6.5" Grey Sport RGB | M3-650X-S-Gm-i / 010-03062-00 |
| 7.7" White Classic | M3-770X-C-Gw / 010-03065-00 |
| 7.7" White Sport | M3-770X-S-Gw / 010-03068-00 |
| 7.7" Grey Sport | M3-770X-S-Gm / 010-03066-00 |
| 7.7" White Sport RGB | M3-770X-S-Gw-i / 010-03069-00 |
| 7.7" Grey Sport RGB | M3-770X-S-Gm-i / 010-03067-00 |
Good Fit For
- Replacing an older marine stereo, speakers, and amplifier
- Upgrading from basic factory boat audio to a cleaner JL Audio 4-speaker setup
- Boats that need stronger cockpit, bow, cabin, or console audio
- Customers who want a clean marine audio package with selectable speaker styles
- Center consoles, bay boats, pontoons, runabouts, cabins, and cockpit audio upgrades
Installation Notes
If your boat did not previously have an amplifier, you may need proper power and ground wiring, RCA cables, remote turn-on wire, speaker wire, terminals, and fuse protection. These can be selected in the Add-On Installation Accessories section before adding the bundle to cart.
For RGB speaker styles, plan for LED wiring at each speaker location. A compatible RGB controller is required if you want adjustable lighting control.
FREQUENTLY ASKED QUESTIONS
Does this kit include everything I need?
For many boats, yes. This bundle includes the main pieces for a marine audio upgrade: the Fusion stereo, JL Audio amplifier, and four JL Audio marine speakers.
It can be used for both fresh installs and replacing an existing system. If your boat already has usable wiring, this may be all you need. If you are starting from scratch or want a cleaner install, wiring kits, RCA cables, speaker wire, terminals, and other install accessories are available as optional add-ons above the add to cart button.
Not sure? Send us a photo of your current setup and we’ll help you choose the right add-ons.
How do I know whether I need the 10 FT or 20 FT wiring kit?
The 20 FT kit is the safest choice for most boats because it gives you extra cable for clean routing around consoles, batteries, rigging tubes, and hidden panels. The 10 FT kit can work for very short runs, but we recommend the 20 FT kit unless you are certain the battery and amplifier are mounted close together.
Choose the 10 FT kit if your house/engine batteries are inside the console and the amplifier will be mounted nearby. Choose the 20 FT kit if your batteries are in an aft compartment or farther away from the amplifier mounting location. For most setups, we recommend mounting the amp within a few feet of your new stereo.
Will the Fusion MS-RA210 fit my existing stereo opening?
In many cases, yes. If your current stereo uses a larger cutout than the Fusion MS-RA210, you can achieve a clean, factory-style installation with the Fusion Stereo Retrofit Kit (Part Number: 010-12829-03) which is found at the bottom of this page. If you're unsure whether you'll need the retrofit kit, contact us before ordering and we'll be happy to verify compatibility with your boat.
Is this a genuine JL Audio and Fusion system?
Yes. Every component is brand new and sourced through authorized distribution. Your purchase includes the full manufacturer warranty.
Can I install this myself?
Yes, if you're comfortable with basic 12V marine wiring. This kit works well for replacing an existing system or building a new 4-speaker setup with the proper installation accessories. Optional install add-ons can be selected on this page for wiring, fuse protection, RCA cables, speaker wire, and other install parts. Need help during the install? We offer support by text, email, or phone for fitment, wiring, and setup questions.
Will this work on my boat?
This bundle is a strong upgrade for most 12V boats, including center consoles, bay boats, pontoons, runabouts, and cockpit audio systems. It is ideal for replacing an older stereo or building a clean, powerful JL Audio marine system. Have a fitment question? Send us a photo of your current speakers or stereo and we’ll help make sure you get the right setup.
Can I add a subwoofer or more speakers later?
This bundle is a great starting point and can be expanded later with an additional amp. The included JL Audio XDM400/4 is set up to properly power the four M3 speakers in this kit. If you want to add a subwoofer, tower speakers, or additional speakers later, we can help build the right add-on setup with the proper amplifier and wiring.
