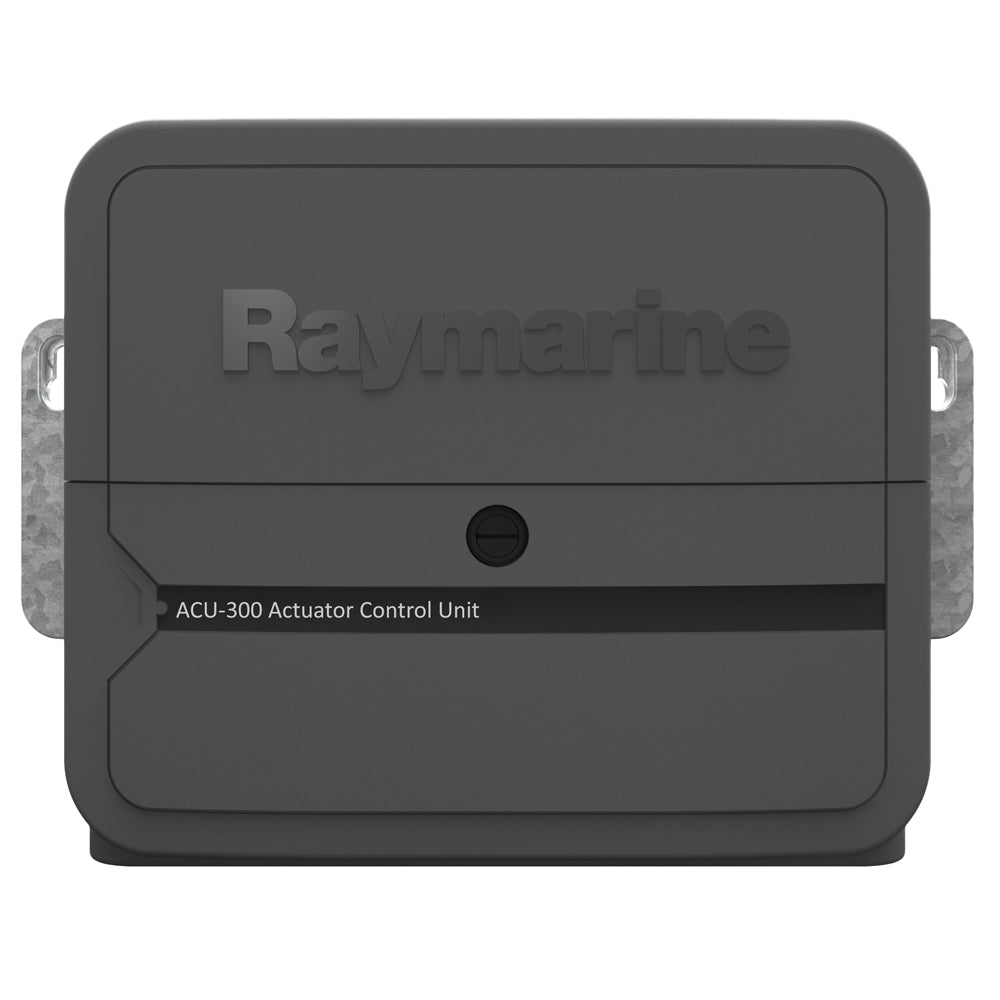

Raymarine ACU-300 Actuator Control Unit f/Solenoid Contolled Steering Systems & Constant Running Hydraulic Pumps [E70139]

Name: Raymarine ACU-300 Actuator Control Unit f/Solenoid Contolled Steering Systems & Constant Running Hydraulic Pumps [E70139]
Brand: Raymarine
SKU: FT-49110
Price: 2118.99 USD
Availability: InStock

Authorized Dealer

Only 2 Left

$2,118.99

$2,118.99 $2,249.99

Free 2-Day Shipping

Enter ZIP for delivery date

Order now Ships next business day

Calculating shipping... to ...

Calculating delivery date...

Checking dispatch times...

Free Shipping Orders over $100

Secure Checkout SSL Encrypted

Manufacturer Warranty Full Warranty Included

Questions before ordering?

Text our installation team for help confirming fitment, wiring, and compatibility before you buy.

Text support 727-351-2251

Text Our Team

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 5 Amps at supply voltage
Drive Clutch Output
No clutch connection

Connections

Includes the M81105 Rotary Rudder Reference
Sleep switch
Power
Solenoid drive out / return
Ground

Nominal supply voltage
12 V or 24 V
Operating voltage range
10.8V to 31.2V dc
Power Consumption (standby) - Main Power Supply
300 mA (12/24V)
Power Consumption (standby) - SeaTalk^ng Power Supply
20 mA (12V)
SeaTalk^ng LEN (Load Equivalency Number)
1
SeaTalk^ng Power Out
3 Amp at 12V (fuse protected at 3 Amp)
Data Connections
SeaTalk^ng

Installation Environment

Operating Temperature: -20°C to +55°C (-4°F to +131°F)
Storage Temperature: -30°C to +70°C (-22°F to +158°F)
Relative Humidity: MAX 93%

Waterproof rating
Drip resistant
Dimensions (W x H x D)
285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)
Weight
2.2kg (4.84lbs)

Conformance

Europe: 2004/108/EC
Australia and New Zealand: C-Tick, Compliance Level 2
