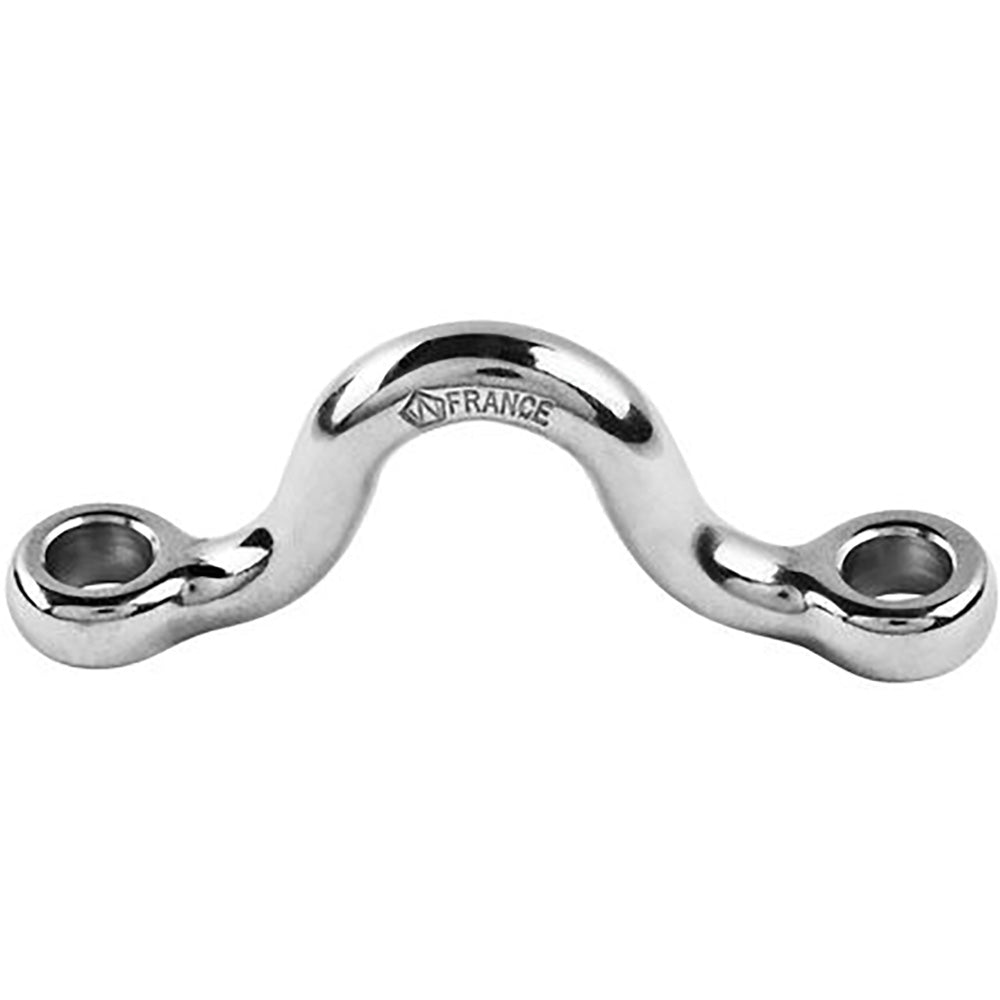

Name: Wichard Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64" [9205W]
Brand: Wichard Marine
SKU: FT-97702
Price: 45.32 USD
Availability: InStock

1/2

Wichard Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64" [9205W]

Authorized Dealer

Only 4 Left

$45.32

$45.32 $53.32

Est. Delivery by Calculating...

Enter ZIP

Calculating shipping... to ...

Calculating delivery date...

Checking dispatch times...

Free Shipping Orders over $100

Secure Checkout SSL Encrypted

Manufacturer Warranty Full Warranty Included

Questions? Call, text or email us.

727-249-9098 · sales@flytetechllc.com

Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64"

Features:

Complete range of drop-forged saddles with high-quality stainless steel (316L)
Outstanding strength
The round shape reduces the wear of the components connected to them (straps, ropes...)

Applications:

Fastening applications
Attachment of straps & cordage

Specifications:

Materials: 316L stainless steel grade
Breaking load: (lb) 15430 / (kg) 7000
Weight: (lb) 0.165 / (g) 75

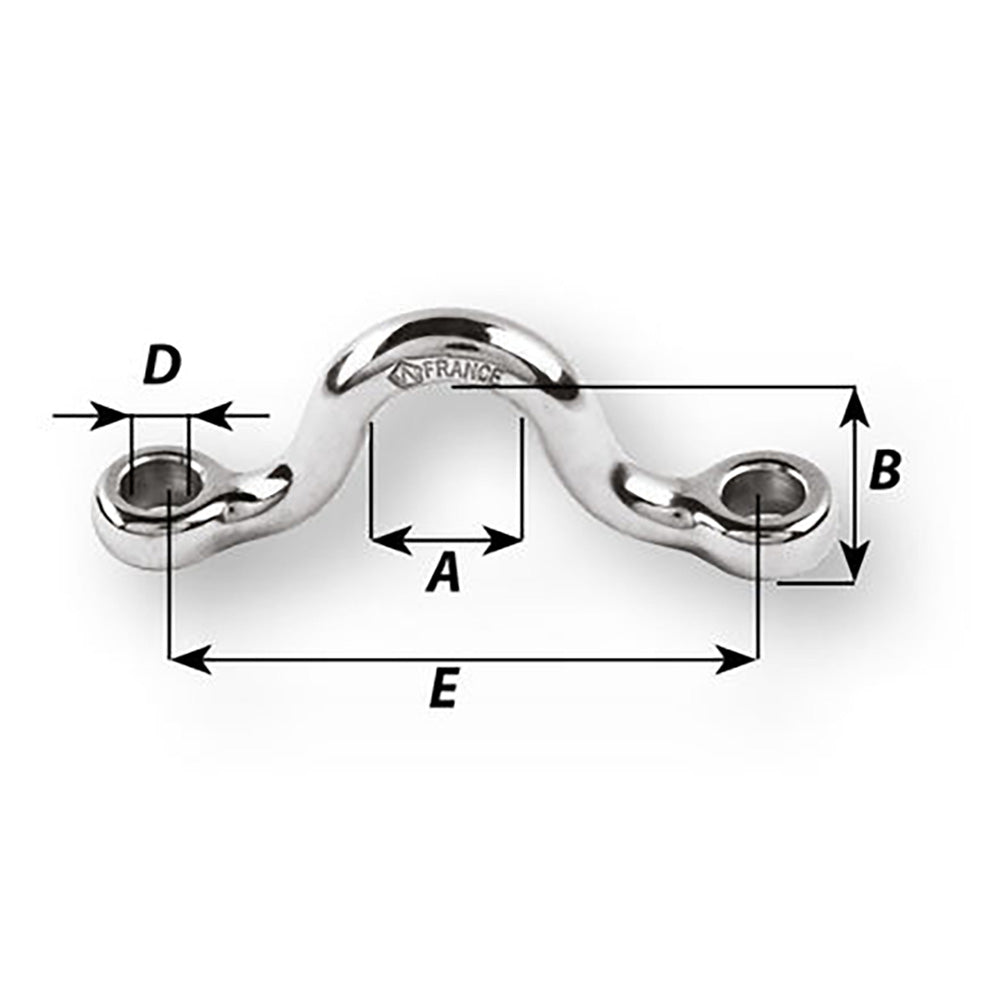

Dimensions:

A: (inch) 25/32" / (mm) 20
B: (inch) 1 1/32" / (mm) 26
D diameter: (inch) 25/64" / (mm) 10
E: (inch) 3 5/64" / (mm) 78

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
