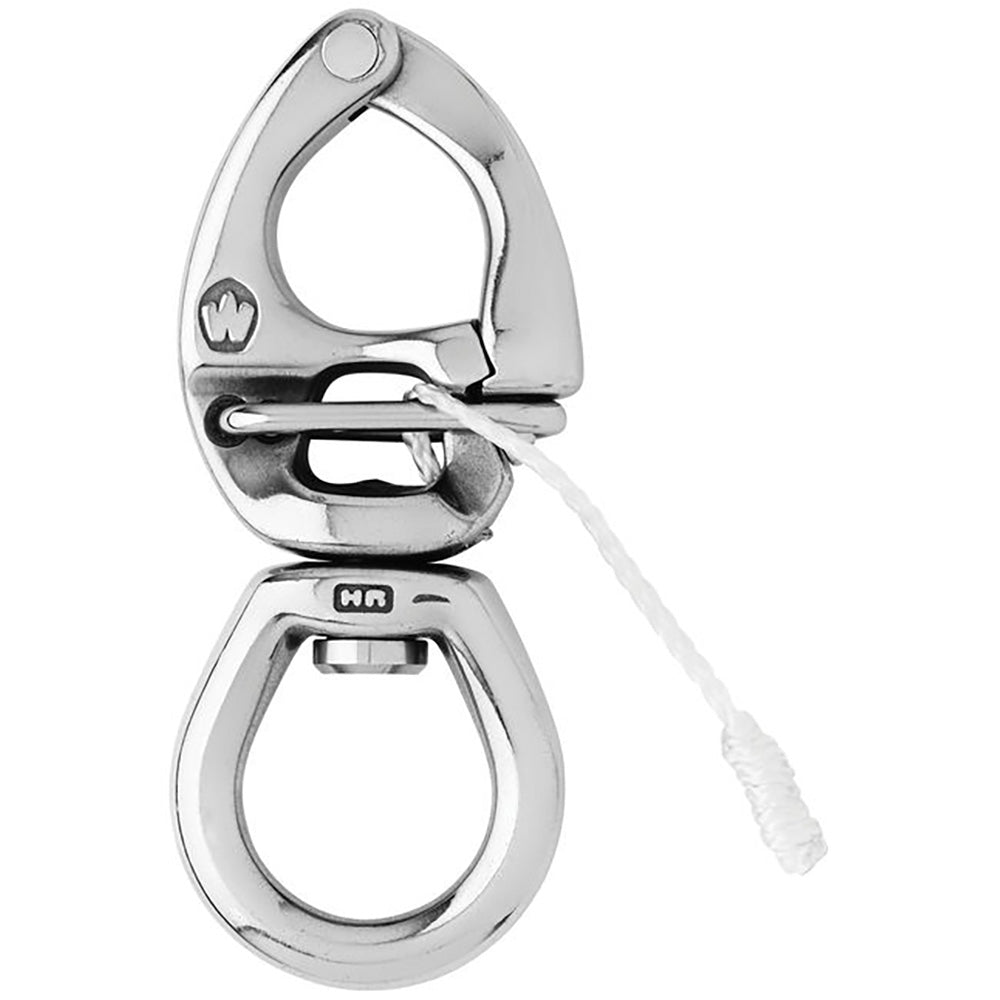

HR Quick Release Snap Shackle With Large Bail-110mm Length - 4-21/64"

Features:

HR forged (17.4 PH) quick-release snap shackle with large bail
The opening is made by pulling the lanyard
Perfect to attach several lines (spinnaker sheets...)
Outstanding working and breaking loads
Free rotation of the snap shackle thanks to the swivel

Applications:

For spinnaker operations
Perfect to attach several lines: spinnaker sheets...

Specifications:

Materials: HR 17.4 PH stainless steel grade
Working load: (lb) 3520 / (kg) 1600
Breaking load: (lb) 6610 / (kg) 3000
Weight: (lb) 0.353 / (g) 160

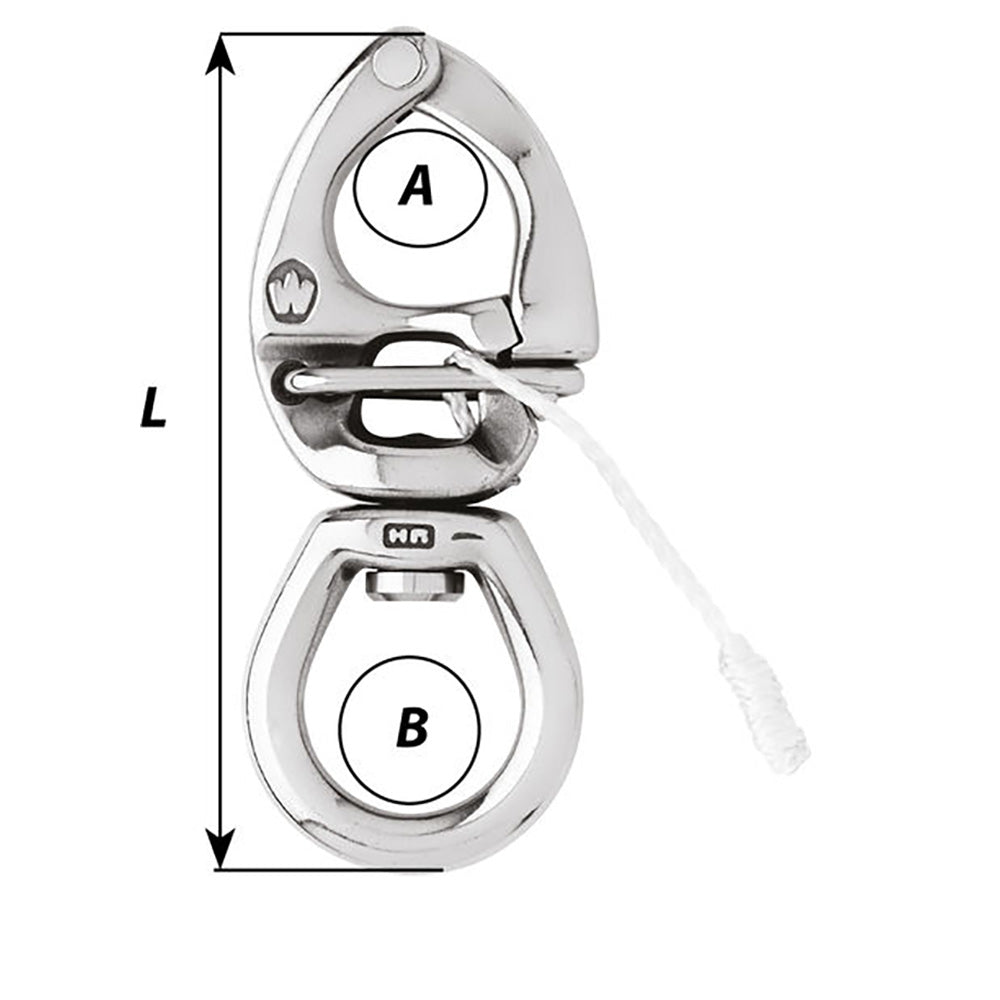

Dimensions:

A: (inch) 25/32" / (mm) 20
B: (inch) 1 3/64" / (mm) 26.5
Length: (inch) 4 21/64" / (mm) 110

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
High Resistance (HR)

*Sold as an Individual

Quick Guide (pdf)
