Name: Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W]
Brand: Wichard Marine
SKU: FT-97631
Price: 71.04 USD
Availability: InStock

1/2

Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W]

Authorized Dealer

Only 4 Left

$71.04

$71.04 $83.58

Free Shipping

Enter ZIP for delivery date

Order now Ships next business day

Calculating shipping... to ...

Calculating delivery date...

Checking dispatch times...

Free Shipping Orders over $100

Secure Checkout SSL Encrypted

Manufacturer Warranty Full Warranty Included

Questions before ordering?

Text our installation team for help confirming fitment, wiring, and compatibility before you buy.

Text support 727-351-2251

Text Our Team

Self-Locking Twisted Shackle - Diameter 10mm - 13/32"

Features:

Self-locking twisted shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loosening due to vibrations
Outstanding working and breaking loads

Applications:

Perfect for applications where a 90° angle twist setup is required
Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

Materials: 316 stainless steel grade
Working load: (lb) 3170 / (kg) 1440
Breaking load: (lb) 9920 / (kg) 4500
Weight: (lb) 0.28 / (g) 127

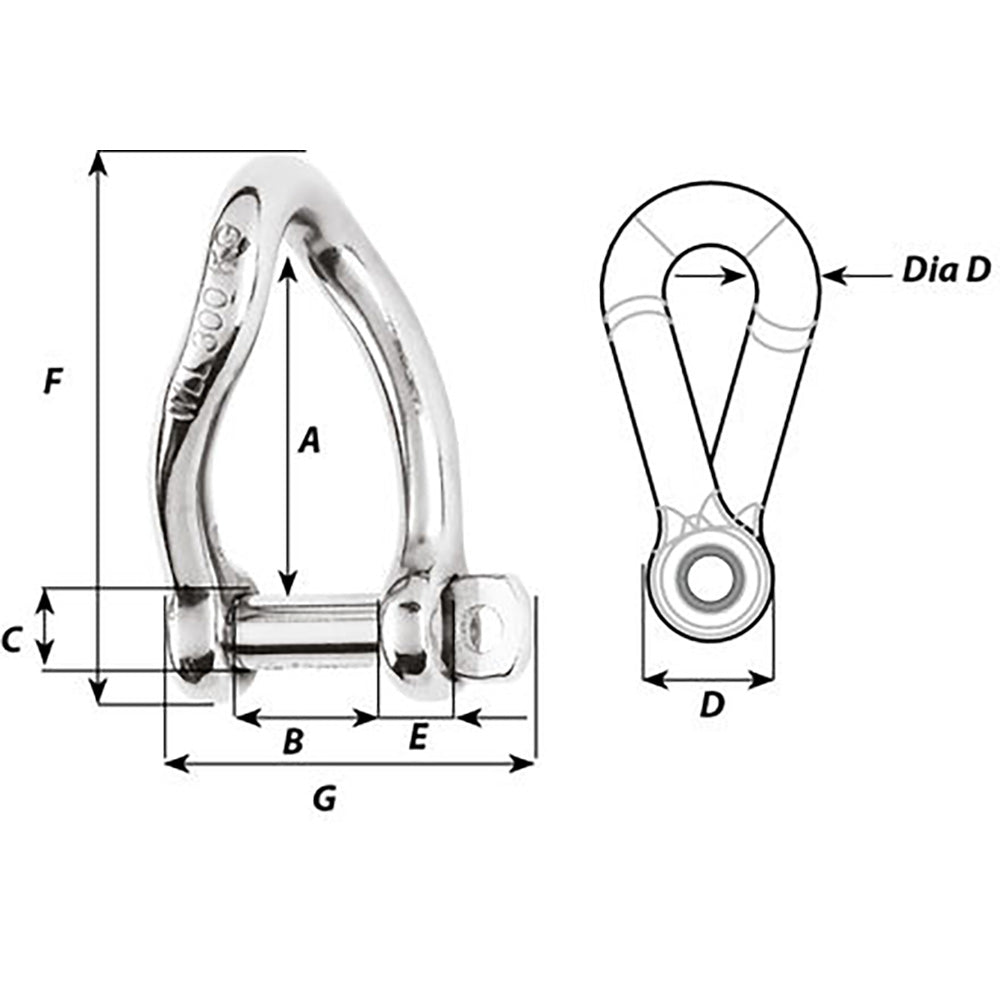

Dimensions:

A: (inch) 1 31/32" / (mm) 50
B: (inch) 25/32" / (mm) 20
C: (inch) 25/64" / (mm) 10
D: (inch) 3/4" / (mm) 19
D diameter: (inch) 25/64" / (mm) 10
E: (inch) 23/64" / (mm) 9
F: (inch) 2 29/32" / (mm) 74

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
