Name: Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]
Brand: Wichard Marine
SKU: FT-97649
Price: 157.84 USD
Availability: InStock

1/2

Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]

Authorized Dealer

Only 4 Left

$157.84

$157.84 $185.69

Free Shipping

Enter ZIP for delivery date

Order now Ships next business day

Calculating shipping... to ...

Calculating delivery date...

Checking dispatch times...

Free Shipping Orders over $100

Secure Checkout SSL Encrypted

Manufacturer Warranty Full Warranty Included

Questions before ordering?

Text our installation team for help confirming fitment, wiring, and compatibility before you buy.

Text support 727-351-2251

Text Our Team

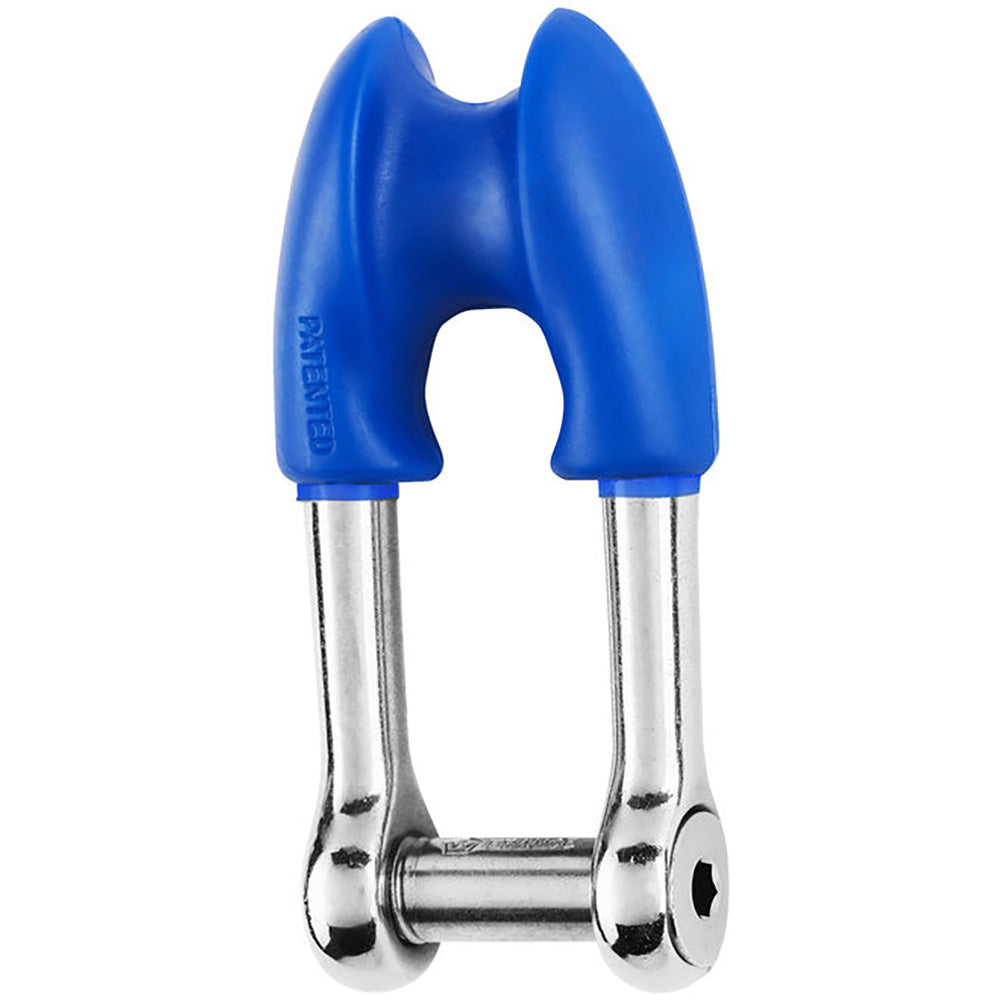

Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

Features:

Thimble shackle with allen head pin forged in grade 316L stainless steel
Allows a rope to be spliced without adding and additional thimble
With the captive pin, no risk to lose the pin
Outstanding working and breaking loads

Applications:

Mainsheet halyards
Max rope size: 16 mm

Specifications:

Materials: 316 stainless steel grade
Working load: (lb) 3350 / (kg) 1520
Breaking load: (lb) 11020 / (kg) 5000
Weight: (lb) 0.313 / (g) 142

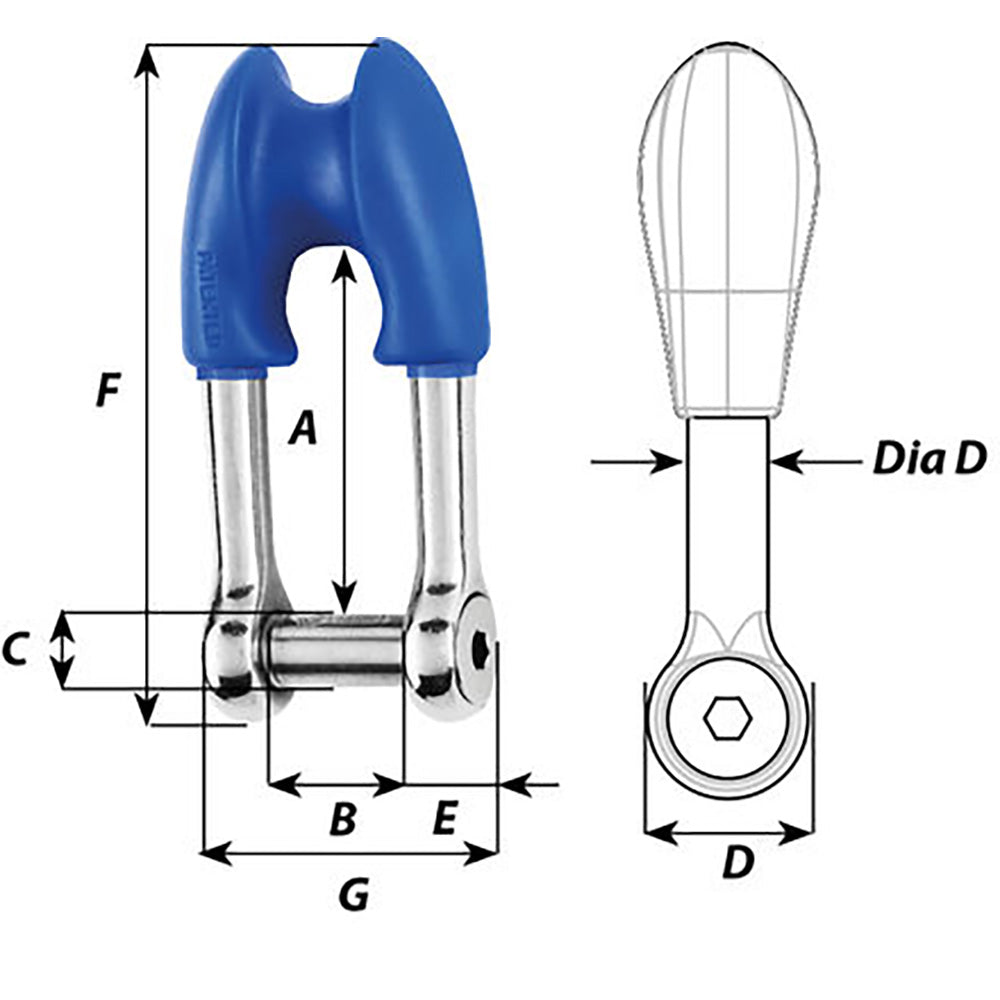

Dimensions:

A: (inch) 2 1/64" / (mm) 51
B: (inch) 25/32" / (mm) 20
C: (inch) 25/64" / (mm) 10
D: (inch) 25/32" / (mm) 20
D diameter: (inch) 25/64" / (mm) 10
E: (inch) 5/16" / (mm) 8
F: (inch) 3 25/32" / (mm) 96
G: (inch) 1 39/64" / (mm) 41

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
