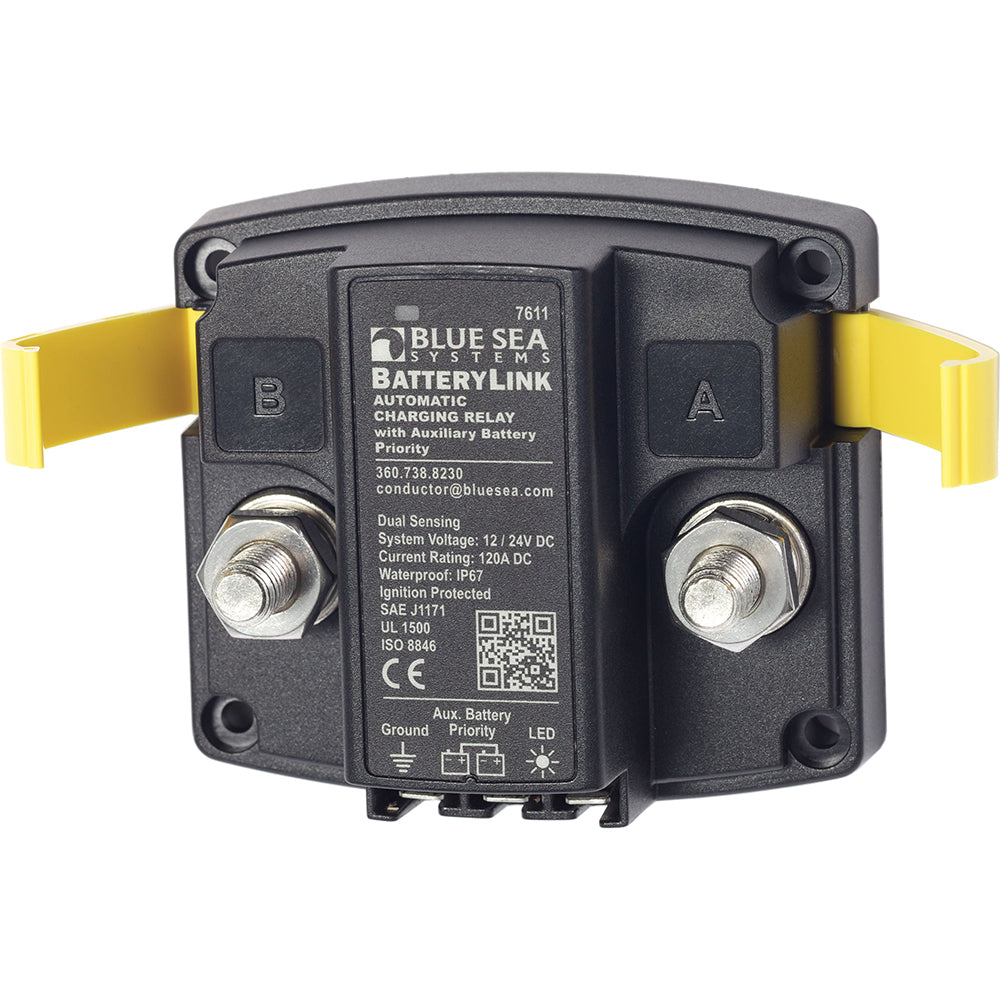

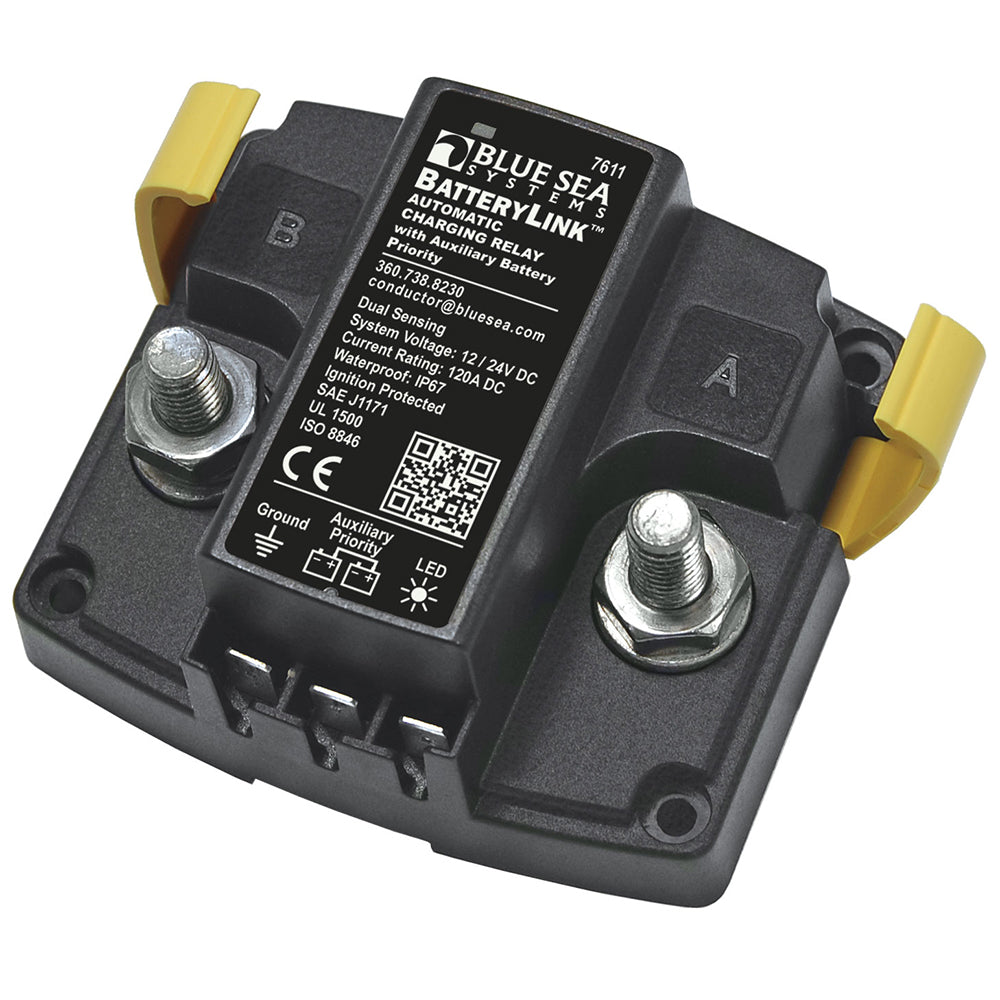

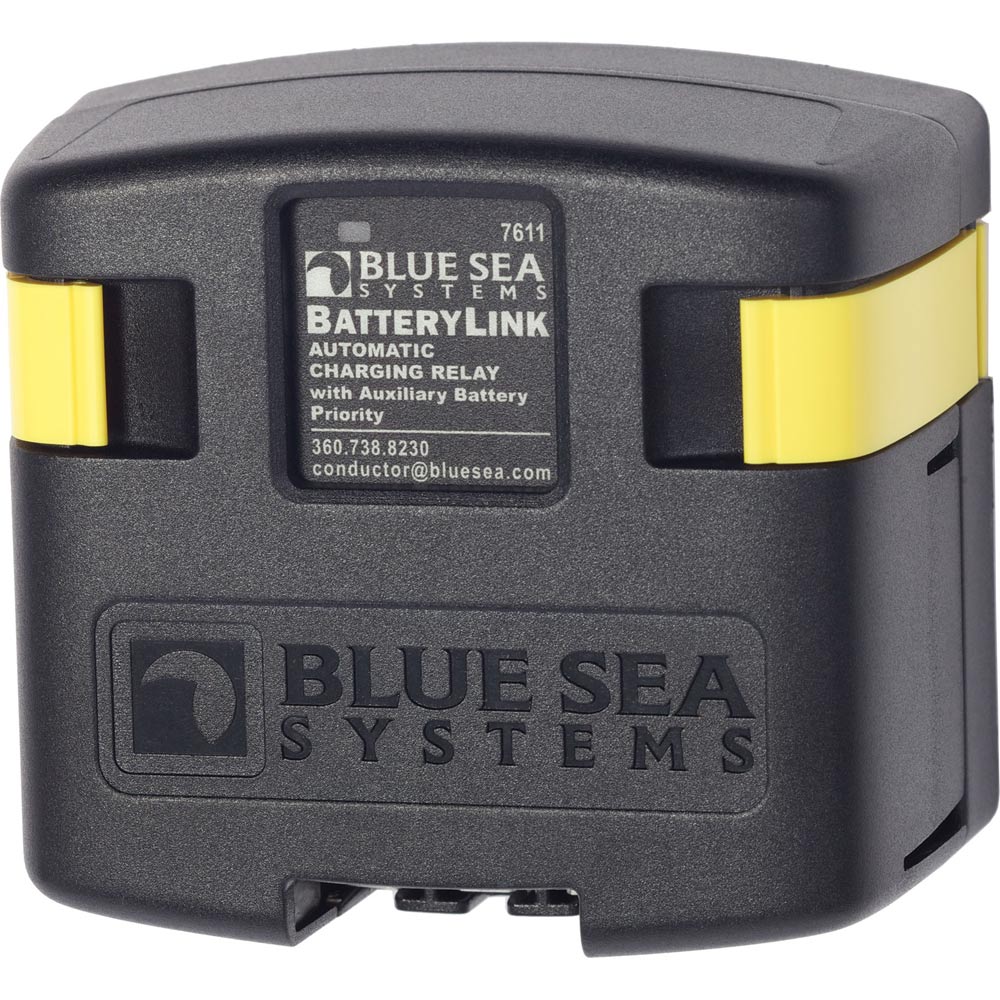

Blue Sea 7611 DC BatteryLink Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging [7611]
Blue Sea 7611 DC BatteryLink Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging [7611]
✓ Full Manufacturer Warranty
✓ Fast Order Processing
✓ Ships from U.S. Distributor
Questions? Call, Text or Email Us
727-249-9098
sales@flytetechllc.com
7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging
Features:
- 120 Amp continuous rating
- 12/24V DC auto ranging voltage input
- Senses charging on two battery banks
- Side and bottom knockouts for cable connections
- Clip-on cover insulates terminal connections
- 7/8" (22 mm) stud length to accept multiple cable terminals
- Integrated LED indicates ACR status
- 1/4" x .032" male quick connect terminals for ground and optional features
Specifications:
- Intermittent Rating: 5 min.: 210 Amps
- Continuous Rating: 120 Amps
- Nominal Voltage: 12/24 Volts DC
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Continuous Amperage: 120a
- Box Dimensions: 4"H x 7"W x 9"L WT: 1.25 lbs
- UPC: 632085076115
Owner's Manual (pdf)
