JL Audio M3 Marine Audio Bundle w/ Fusion MS-RA210, 4 M3 Speakers, XDM700/5 Amp & 10" Subwoofer
$2,139.95
Sale price
$2,139.95
Regular price
$2,209.94
Skip to product information
Auto-Selected
Shop All Bundles
JL Audio M3 Marine Stereo Bundle
Includes Fusion MS-RA210 • JL Audio XDM700/5 Amplifier • 4 JL Audio M3 6.5" White Classic Speakers • Matching JL Audio M3 10" Subwoofer
Authorized Dealer
Checking Stock
$2,139.95
Sale price
$2,139.95
Regular price
$2,209.94
Free 2-Day Shipping
to
Est. Delivery:
Enter ZIP for delivery date
Order now
Ships next business day
Enter a valid 5-digit ZIP code.
$0 Sales Tax for orders outside Florida
Choose your speaker style
Two pairs are included. Choose 6.5" or 7.7", then select the grille style you prefer.
Speaker size
Checking stock
Included wireless remote
What's included
1 x FUSION MS-RA210010-02250-00
1 x JL AUDIO XDM700/5010-03118-00
2 x JL AUDIO M3 SPEAKERS (PAIR)Selected model
1 x JL AUDIO M3 10" SUBWOOFERSelected model
1 x FUSION ARX70 REMOTESelected model
Save 5-15% on optional wiring and installation accessories added below.
1 add-on5% off
2 add-ons10% off
3+ add-ons15% off
Loading add-ons...
Authorized Dealer
Genuine products
Secure Checkout
Encrypted payments
Manufacturer Warranty
3 Year Warranty
Questions before ordering?
Need help with fitment, wiring, or compatibility? Our installation team can help before you order.
JL Audio M3 + Fusion marine stereo bundle
JL Audio M3 4-Speaker System with 10" Subwoofer
A properly configured marine audio system built around the Fusion MS-RA210 and JL Audio M3 components. It gives you two-zone source control, one compact five-channel amplifier for four speakers and a 10" subwoofer, and a choice of speaker size and grille style to suit your boat.
MS-RA210 source & control
Bluetooth, USB, AM/FM, stereo AUX, SiriusXM-ready capability, two independently controlled zones, Fusion DSP, plus Fusion-Link and NMEA 2000 support.
Dedicated five-channel power
The XDM700/5 provides 75W RMS to each M3 speaker and up to 180W RMS to the 4-ohm M3 10" subwoofer at 14.4V. Correct gain and crossover setup matters.
What it adds to the boat
With a proper installation and tune, expect cleaner volume, stronger midbass, and a dedicated bass channel instead of relying on head-unit power alone.

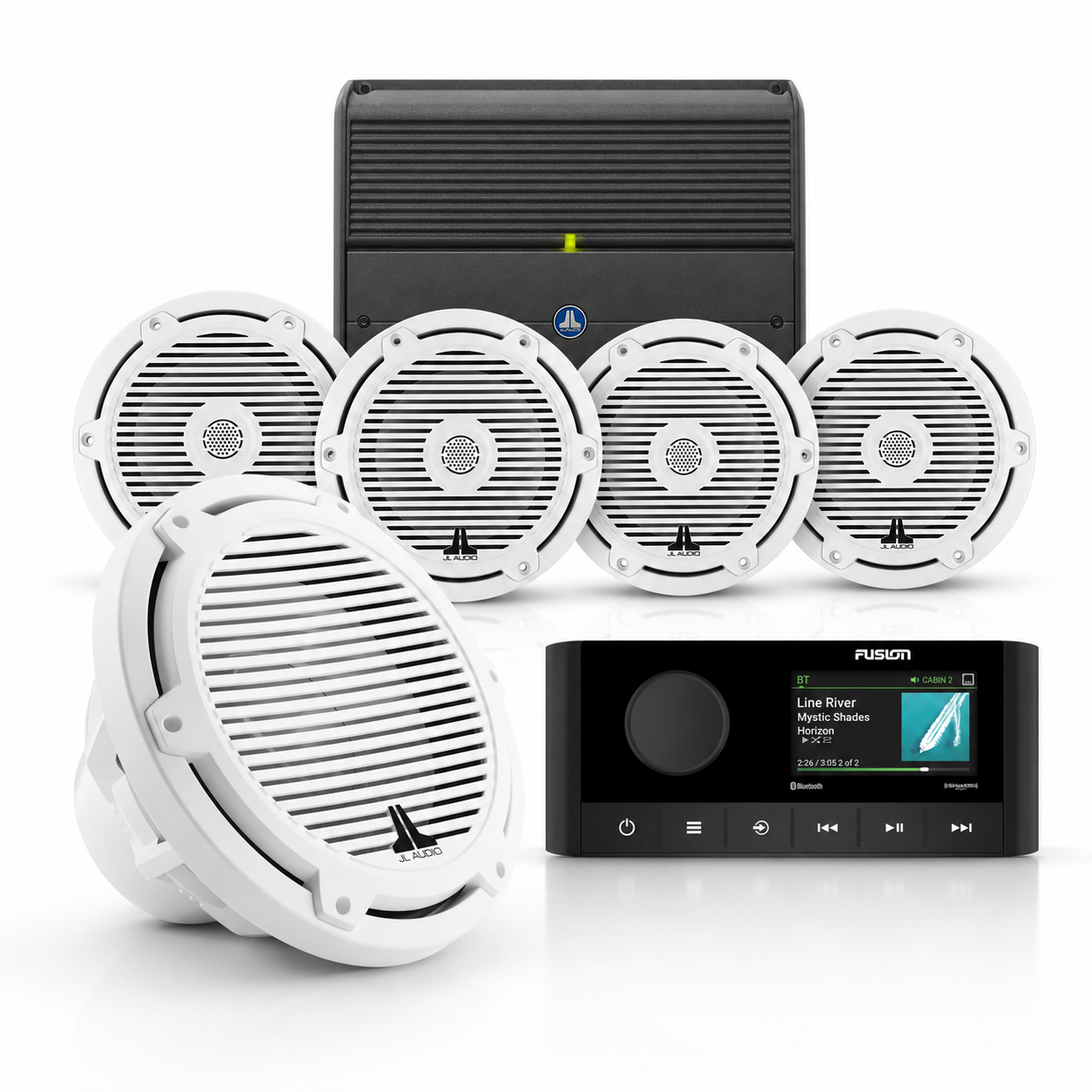

Included: Fusion MS-RA210 stereo, JL Audio XDM700/5 amplifier, two pairs of M3 speakers, one M3 10" subwoofer, and your selected Fusion ARX70 remote. Choose the speaker size, grille style, subwoofer grille, and remote color above before adding the system to cart.
Included components
Package components
Select any component below to view its key features. Installation accessories are selected separately near Add to Cart.
Fusion MS-RA210 marine stereo 2-zone source unit with DSP and six RCA output jacks View featuresHide features
2 audio zonesTwo independently controlled audio zones.
6 RCA outputsTwo stereo zone outputs plus two mono subwoofer outputs.
Fusion DSPZone-specific tuning and DSP profiles through the Fusion Audio app.
Multiple sourcesBluetooth, USB, stereo RCA AUX, AM/FM, and SiriusXM-ready.
Network controlFusion-Link and NMEA 2000 support for compatible displays and devices.
Marine ratedIPX6/IPX7 front panel when properly installed.
Fusion ARX70 wireless remote Compact wireless control; choose black or white View featuresHide features
Wireless controlANT 2.4 GHz connection with no control wiring required.
Up to 33 ft.Published wireless operating range up to 10 m.
Core audio controlsVolume, source, track/station, play/pause, and mute.
Zone selectionSupports zone selection on compatible Fusion stereos.
Black or whiteChoose ARX70B or ARX70W before adding the bundle to cart.
IPX6 / IPX7Designed for exposed marine installations.
JL Audio XDM700/5 system amplifier Four full-range channels plus one dedicated subwoofer channel View featuresHide features
75W RMS × 4Main-channel output at 4 ohms and 14.4V.
180W RMS × 1Subwoofer-channel output at 4 ohms and 14.4V.
NexD Class DCompact, efficient five-channel amplifier architecture.
Flexible inputsSelectable 2-, 4-, or 6-channel RCA input configuration.
Built-in filteringHigh-pass, band-pass, and low-pass filter options by channel group.
60A recommended fuseOperating voltage range is 11 to 14.5 VDC.
JL Audio 4 × M3 marine speakers Choose 6.5" or 7.7" models and available grille styles View featuresHide features
Four speakers totalTwo matched pairs are included in the package.
6.5" option60W RMS each, 5.00"–5.25" mounting hole, 6.90" outside diameter.
7.7" option70W RMS each, 6.25" mounting hole, 7.70" outside diameter.
75W RMS availableIncluded amplifier supplies 75W RMS to each speaker at 4 ohms / 14.4V.
4-ohm coaxialsMarine coaxial construction with 0.75" silk-dome tweeters.
RGB optionsRGB lighting is available on selected Sport grille models.
Confirm cutout, mounting depth, grille clearance, and clear space behind each speaker before cutting or drilling.
JL Audio M3 10" marine subwoofer 4-ohm infinite-baffle subwoofer with selectable grille style View featuresHide features
175W RMS handlingRecommended amplifier power range is 50–175W RMS.
Up to 180W RMS availableSet gain correctly for the subwoofer's 175W continuous power rating.
Infinite-baffle designDesigned for marine installations without a conventional small enclosure.
8.875" cutoutRequired mounting-hole diameter.
5.00" mounting depthMinimum rear mounting-depth clearance.
10.75" outside diameterOverall outside diameter of the subwoofer grille assembly.
Included amplifier outputJL Audio XDM700/5
75W × 4RMS at 4 ohms for the four speakers
180W × 1RMS at 4 ohms for the subwoofer
Before you order
Fitment, installation & warranty
Will this system fit my boat? Check speaker and subwoofer mounting dimensions before ordering. View detailsHide details
This system is intended for boats with four suitable speaker locations and a dedicated mounting location for one 10" subwoofer. Confirm fitment before ordering; it is not a universal drop-in package.
Choose 6.5" speakers for common factory replacement locations or tighter clearances. Choose 7.7" speakers only when the larger 6.25" cutout and 3.17" mounting-depth clearance are available.
Before ordering, confirm the selected speaker cutout, mounting depth, grille clearance, and clear space behind the mounting surface. The M3 10" subwoofer requires an 8.875" cutout, 5.00" mounting depth, 10.75" outside diameter, and a rigid mounting surface.
What installation accessories will I need? Add only the wiring and accessories required for your installation. View detailsHide details
Use the Optional Installation Accessories selector near Add to Cart to choose the wiring and supplies your boat needs. Most installations require:
- Correctly sized marine amplifier power and ground wiring with fuse protection
- Signal wiring matched to the desired zone and subwoofer control; the MS-RA210 provides six RCA output jacks
- Marine speaker wire, subwoofer wire, and a remote turn-on lead
- Marine-grade terminals and any required mounting hardware
Measure the one-way route from the battery to the amplifier before choosing a power-kit length. If you are unsure about wiring, fitment, or speaker selection, contact us before ordering.
Are the components genuine and covered by warranty? Brand-new authorized product with applicable manufacturer coverage. View detailsHide details
Yes. Flyte Tech Marine is an authorized dealer. Every component is brand new and includes the applicable Fusion or JL Audio manufacturer warranty. Keep your proof of purchase and review the manufacturer's warranty terms for the selected component.
Technical reference
Full specifications
Open only the component you want to review. These rows are the detailed technical reference for the package.
Fusion MS-RA210 marine stereo Sources, outputs, connectivity, power, and dimensions View specsHide specs
| Display | 2.7" optically bonded color LCD |
| Audio zones | 2 independently controlled zones |
| Inputs / sources | Bluetooth, USB, stereo RCA AUX input, AM/FM, and SiriusXM-ready with compatible tuner and subscription |
| RCA / preamp outputs | 2 stereo zone line outputs (Zone 1 L/R + Zone 2 L/R) plus 2 mono subwoofer outputs — 6 RCA output jacks total |
| RCA AUX input | 1 stereo RCA input / 2 RCA jacks; 1V RMS typical input level |
| Amplifier turn-on output | Dedicated amplifier-on lead; 100mA maximum output current |
| Fusion-Link control | Compatible control from supported multifunction displays, smartphones, and Garmin watches |
| NMEA 2000 | Supported for compatible network control and speed-based volume |
| Audio tuning | Built-in Fusion DSP with zone-specific settings and DSP profiles through the Fusion Audio app |
| Subwoofer control | Zone-specific subwoofer level and cutoff-frequency control |
| Built-in amplifier | Class D; 4 × 26W RMS at 4 ohms with 14.4V input |
| Line output level | 5.5V peak-to-peak maximum |
| Input voltage | 10.8 to 16 VDC |
| Fuse | 15A mini blade-type |
| Water rating | IPX6 and IPX7 front panel when properly installed; IPX2 rear |
| Overall dimensions | 6.18" W × 2.68" H × 4.99" D |
Fusion ARX70 wireless remote Control range, mounting, controls, and protection View specsHide specs
| Color | Choice of Black ARX70B or White ARX70W |
| Wireless connection | ANT 2.4 GHz |
| Wireless range | Up to 33 ft. / 10 m |
| Primary controls | Volume, source, previous / next track or station, play / pause, and mute |
| Zone control | Supports zone selection on compatible Fusion stereos |
| Mounting | Wireless surface mount with high-bonding adhesive; no control wiring required |
| Water rating | IPX6 and IPX7 |
| Battery | Replaceable CR2032 3V lithium coin-cell battery |
JL Audio XDM700/5 amplifier Channel power, filters, inputs, electrical requirements, and dimensions View specsHide specs
| Channels | 5-channel system amplifier: 4 full-range channels + 1 subwoofer channel |
| Amplifier technology | NexD Class D design |
| Main channels at 4 ohms | 75W RMS × 4 at 14.4V |
| Main channels at 2 ohms | 100W RMS × 4 at 14.4V |
| Main channels bridged at 4 ohms | 200W RMS × 2 at 14.4V |
| Sub channel at 4 ohms | 180W RMS × 1 at 14.4V |
| Sub channel at 3 ohms | 240W RMS × 1 at 14.4V |
| Sub channel at 2 ohms | 300W RMS × 1 at 14.4V |
| RCA input modes | Selectable 2-, 4-, or 6-channel input configuration |
| Channels 1 & 2 filter | Off or high-pass; 12 dB/octave; adjustable from 50 Hz to 5 kHz |
| Channels 3 & 4 filter | Off, high-pass, or band-pass; 12 dB/octave; adjustable from 50 to 500 Hz |
| Subwoofer filter | Off or low-pass; selectable 12 / 24 dB per octave; adjustable from 50 to 500 Hz |
| Turn-on modes | Signal sensing, DC-offset sensing, or conventional +12V remote turn-on |
| Remote level control | Optional JL Audio HD-RLC or water-resistant MHD-RLC; can control all channels or the subwoofer channel |
| Recommended fuse | 60A |
| Operating voltage | 11 to 14.5 VDC |
| Dimensions | 10.23" W × 7.09" D × 2.05" H |
JL Audio M3 speakers Compare the selectable 6.5" and 7.7" configurations View specsHide specs
M3 6.5" speakers
| Speaker type | Marine coaxial |
| Continuous power | 60W RMS each |
| Recommended amplifier power | 20–120W RMS per channel |
| Included amplifier output | 75W RMS each at 4 ohms / 14.4V |
| Sensitivity | 89.5 dB |
| Frequency response | 55 Hz – 25 kHz |
| Nominal impedance | 4 ohms |
| Tweeter | 0.75" silk dome |
| Mounting depth clearance | 2.78" |
| Mounting hole | 5.00"–5.25" |
| Outside diameter | 6.90" |
| Frontal grille protrusion | 0.97" Classic / 1.01" Sport |
| Bolt-hole circle | 6.125" |
| RGB lighting | Available on selected Sport grille models |
M3 7.7" speakers
| Speaker type | Marine coaxial |
| Continuous power | 70W RMS each |
| Recommended amplifier power | 20–140W RMS per channel |
| Included amplifier output | 75W RMS each at 4 ohms / 14.4V |
| Sensitivity | 90.5 dB |
| Frequency response | 45 Hz – 25 kHz |
| Nominal impedance | 4 ohms |
| Tweeter | 0.75" silk dome |
| Mounting depth clearance | 3.17" |
| Mounting hole | 6.25" |
| Outside diameter | 7.70" |
| Frontal grille protrusion | 1.02" Classic / 1.10" Sport |
| Bolt-hole circle | 6.92" |
| RGB lighting | Available on selected Sport grille models |
This bundle includes four speakers / two pairs. Confirm the selected cutout, mounting depth, grille clearance, and clear space behind the mounting surface before cutting or drilling.
JL Audio M3 10" subwoofer Power handling, enclosure guidance, and installation dimensions View specsHide specs
| Speaker type | 10" marine infinite-baffle subwoofer |
| Nominal impedance | 4 ohms |
| Continuous power handling | 175W RMS |
| Recommended amplifier power | 50–175W RMS |
| Included amplifier output | Up to 180W RMS at 4 ohms / 14.4V; set gain correctly for the subwoofer's 175W continuous power rating |
| Sensitivity | 87.23 dB |
| Installation | Designed primarily for infinite-baffle marine installations; confirm clearance and mounting-surface rigidity before installation |
| Mounting hole | 8.875" |
| Mounting depth clearance | 5.00" |
| Outside diameter | 10.75" |
| Frontal grille protrusion | 1.50" Classic / 1.58" Sport |
| Bolt-hole circle | 9.71" |
| RGB lighting | Available on selected Sport grille models |
Model reference
Part numbers & selectable models
View bundle model numbers Speaker and subwoofer model numbers depend on the options selected above. View modelsHide models
Exact speaker and subwoofer model numbers depend on the options selected on this page.
Main bundle components
| Fusion MS-RA210 marine stereo | Model: MS-RA210 MPN: 010-02250-00 |
| Fusion ARX70 wireless remote | ARX70B Black — MPN 010-02167-20 ARX70W White — MPN 010-02167-21 |
| JL Audio XDM700/5 system amplifier | Model: XDM700/5 MPN: 010-03118-00 |
Selectable JL Audio M3 speaker options
| M3 6.5" White Classic | Model: M3-650X-C-Gw MPN: 010-03060-00 |
| M3 6.5" Grey Metallic Sport | Model: M3-650X-S-Gm MPN: 010-03061-00 |

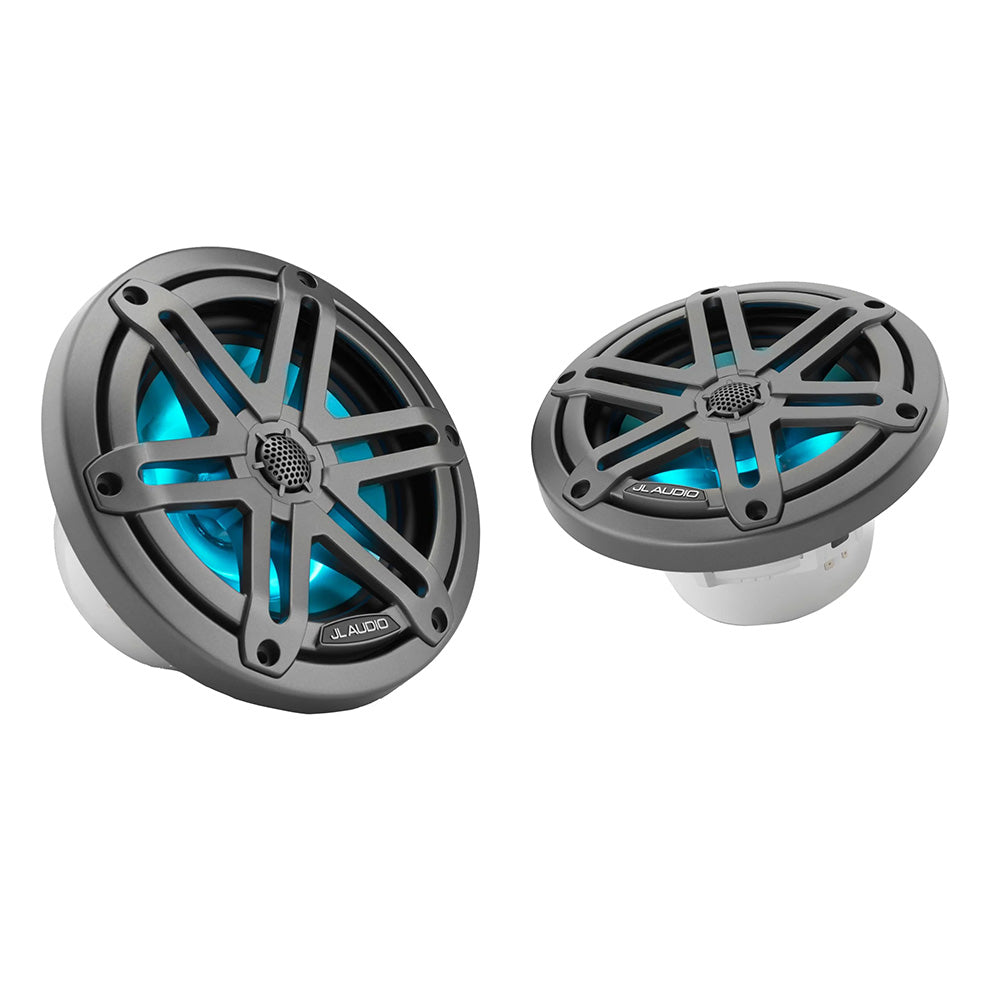

| M3 6.5" Grey Metallic Sport RGB | Model: M3-650X-S-Gm-i MPN: 010-03062-00 |
| M3 6.5" White Sport | Model: M3-650X-S-Gw MPN: 010-03063-00 |

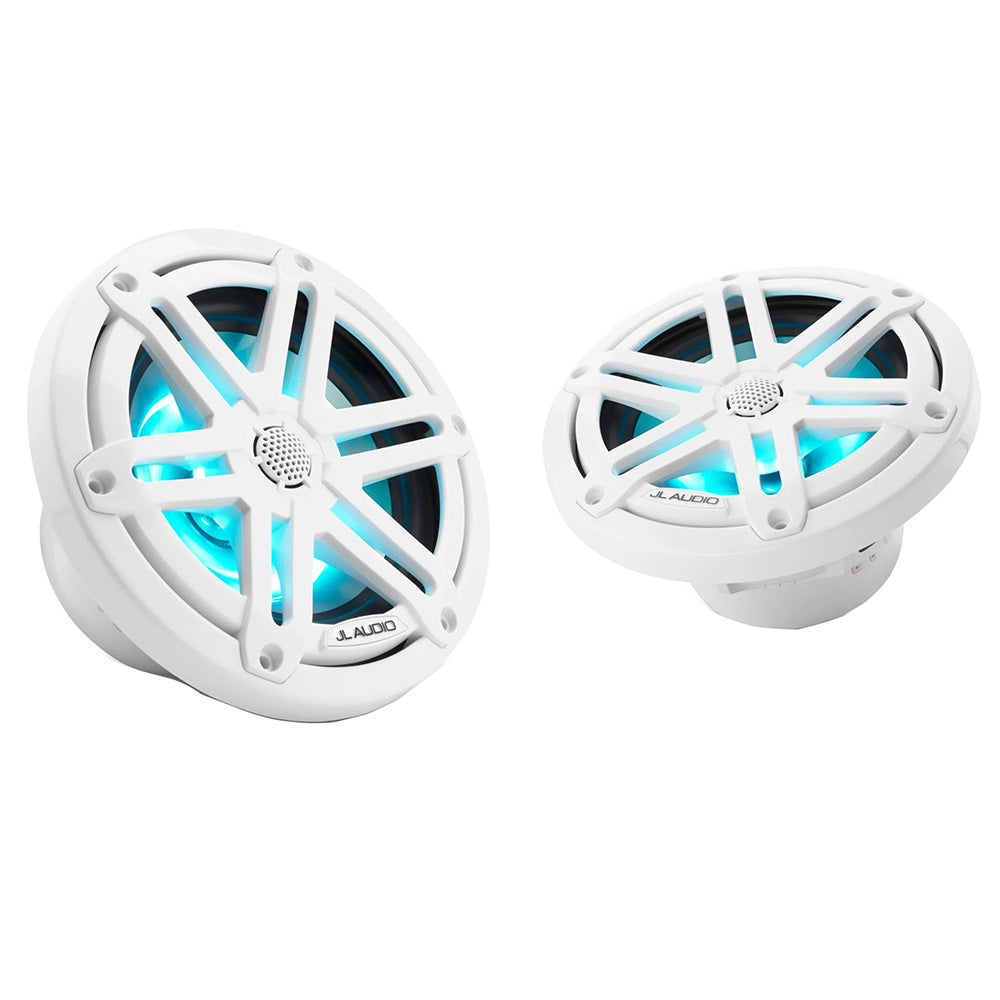

| M3 6.5" White Sport RGB | Model: M3-650X-S-Gw-i MPN: 010-03064-00 |
| M3 7.7" White Classic | Model: M3-770X-C-Gw MPN: 010-03065-00 |

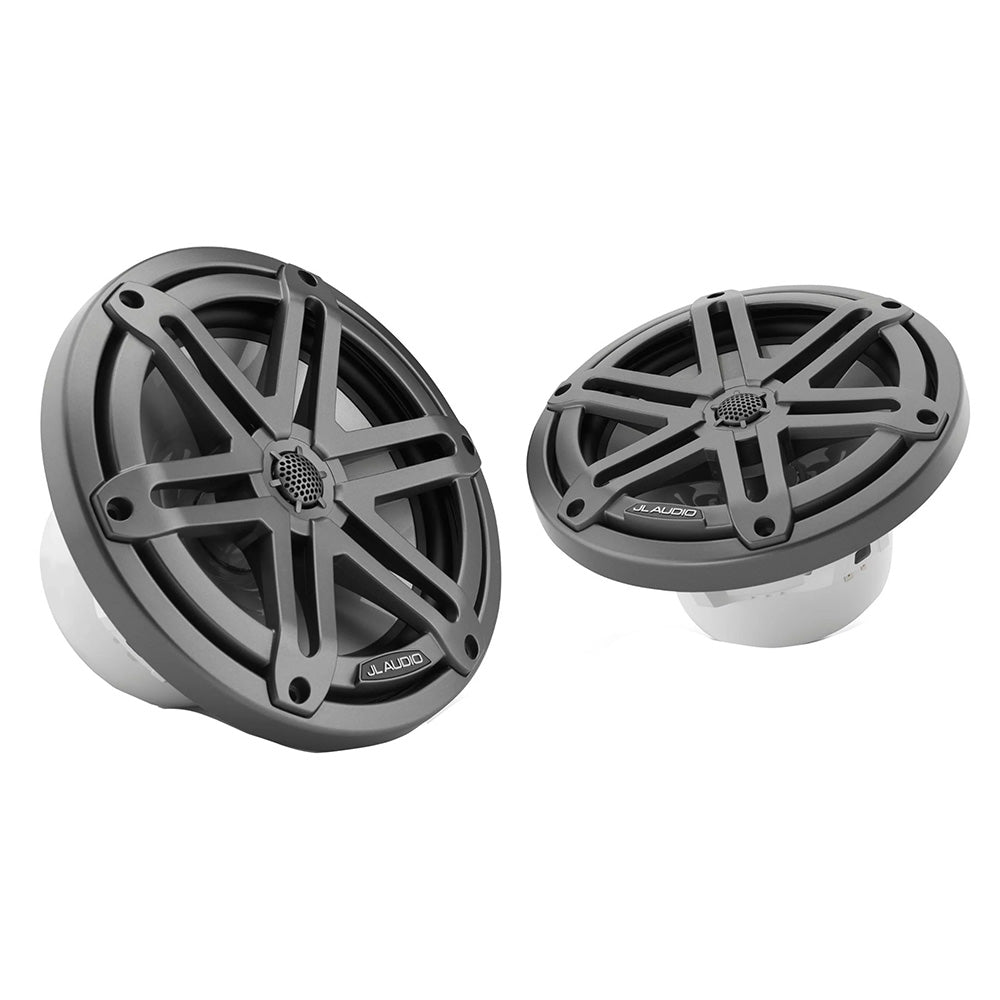

| M3 7.7" Grey Metallic Sport | Model: M3-770X-S-Gm MPN: 010-03066-00 |
| M3 7.7" Grey Metallic Sport RGB | Model: M3-770X-S-Gm-i MPN: 010-03067-00 |

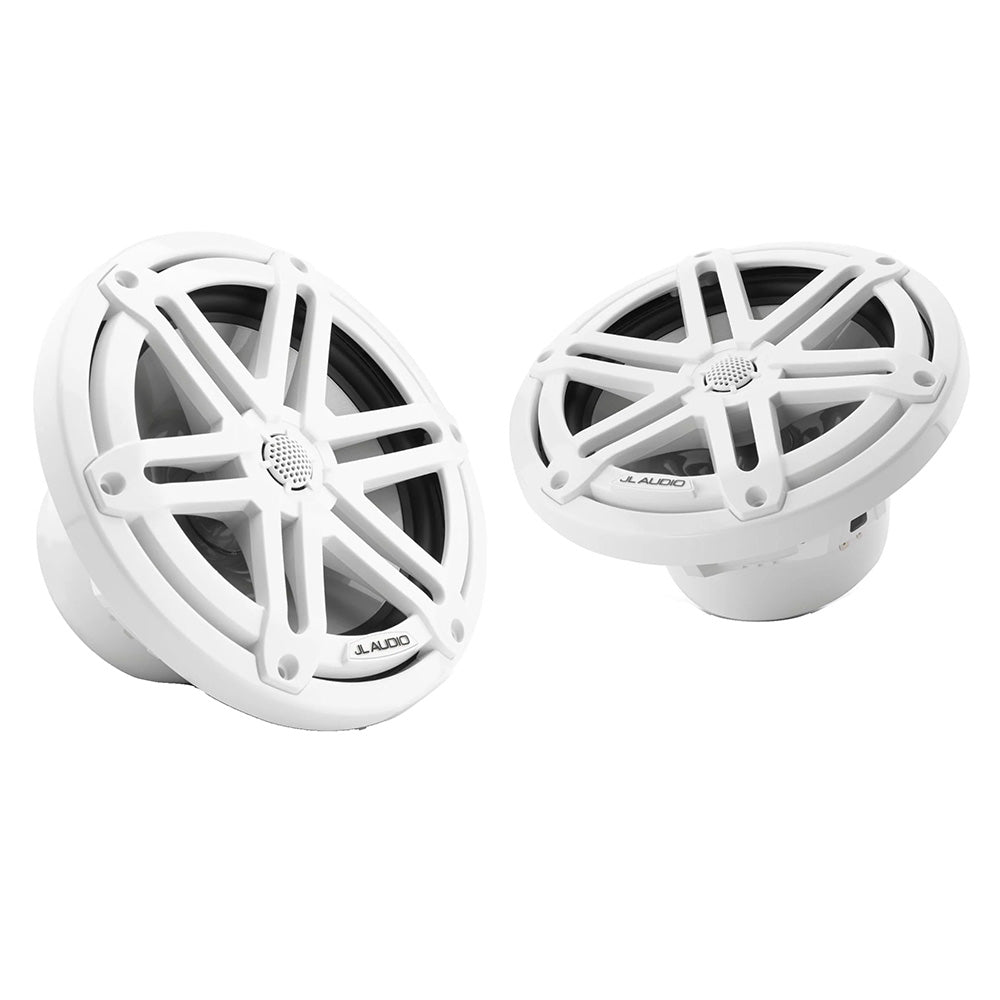

| M3 7.7" White Sport | Model: M3-770X-S-Gw MPN: 010-03068-00 |
| M3 7.7" White Sport RGB | Model: M3-770X-S-Gw-i MPN: 010-03069-00 |
Selectable JL Audio M3 10" subwoofer options
| M3 10" White Classic | Model: M3-10IB-C-Gw-4 MPN: 010-03070-00 |
| M3 10" Grey Metallic Sport | Model: M3-10IB-S-Gm-4 MPN: 010-03071-00 |
| M3 10" White Sport | Model: M3-10IB-S-Gw-4 MPN: 010-03072-00 |
| M3 10" Grey Metallic Sport RGB | Model: M3-10IB-S-Gm-i-4 MPN: 010-03264-00 |
| M3 10" White Sport RGB | Model: M3-10IB-S-Gw-i-4 MPN: 010-03265-00 |
This system includes one Fusion ARX70 wireless remote, two pairs / four total speakers, and one matching M3 subwoofer. Verify your selected speaker, subwoofer, and remote color before adding the system to cart.
Need a different setup?
Compare our other complete marine audio bundles.
From our shop in Gulfport, FL — here's what our customers say:
“After going through multiple electronics guys and wasting time and money I found Billy. He fixed all my problems on the boat and didn’t try to sell me things I didn’t need. He is reliable and thorough. I wouldn’t use anyone else for my boat!!”
R
Robert R.
Google review
“Great service and professional installation of battery switch, wires and electronics.”
J
J.L. W
Google review
Complete Your Purchase
More Marine Audio Bundles
Product questions
Have a question about a product?
Questions about fitment or compatibility? We install what we sell and can point you in the right direction.
Mon–Fri, 9am–5pm ET
