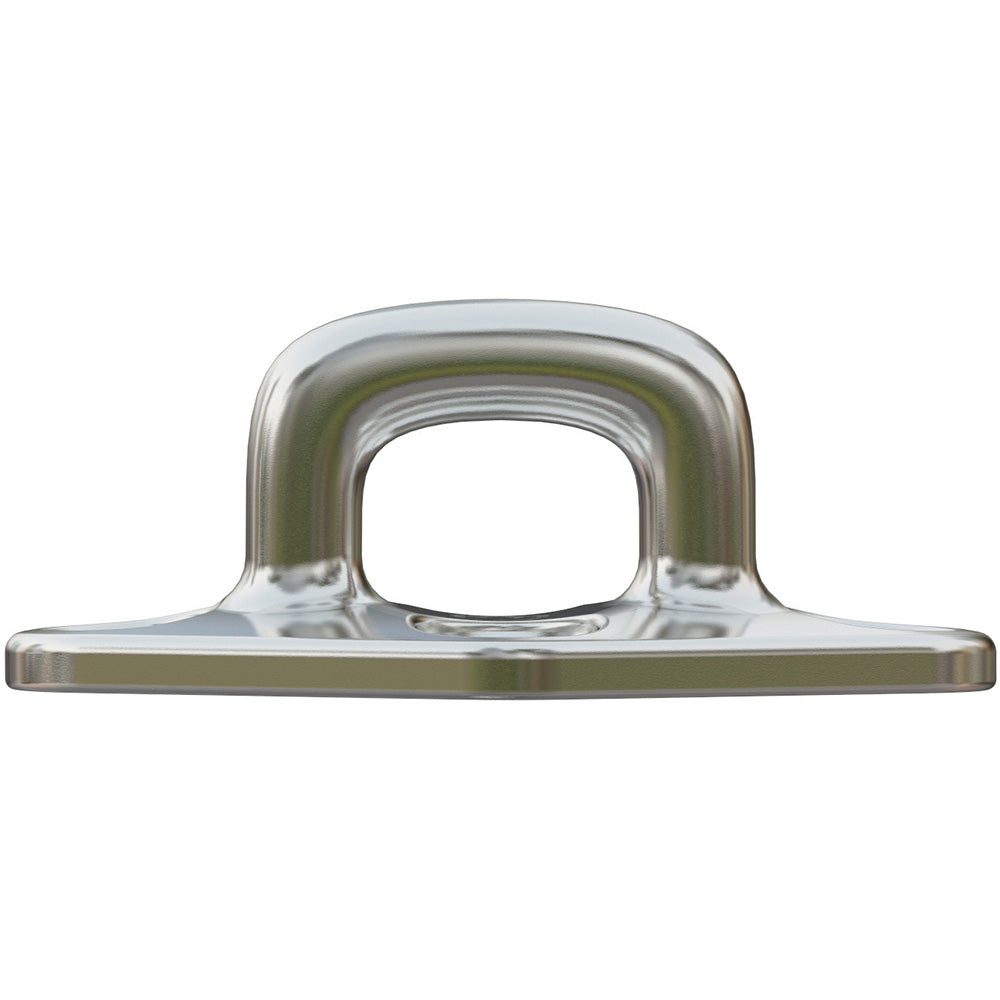

Diamond Pad Eye - Square - 79mm Length (3-7/64") - M6 Screw

Features:

Mechanical resistance versus corrosion resistance ratio
Optimized dimensions
For M6 screw

Applications:

Mast foot blocks
Reefing blocks
Various fastenings

Specifications:

Materials: Duplex stainless steel grade
Working Load: (lb) 5950 / (kg) 2700
Breaking Load: (lb) 16093.7 / (kg) 7300
Weight: (lb) 0.32 / (g) 145
W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
B.L 1 (90 degrees): (lb) 16093.7 / (kg) 7300
B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
B.L 3 (0 degrees): (lb) 13889.1 / (kg) 6300

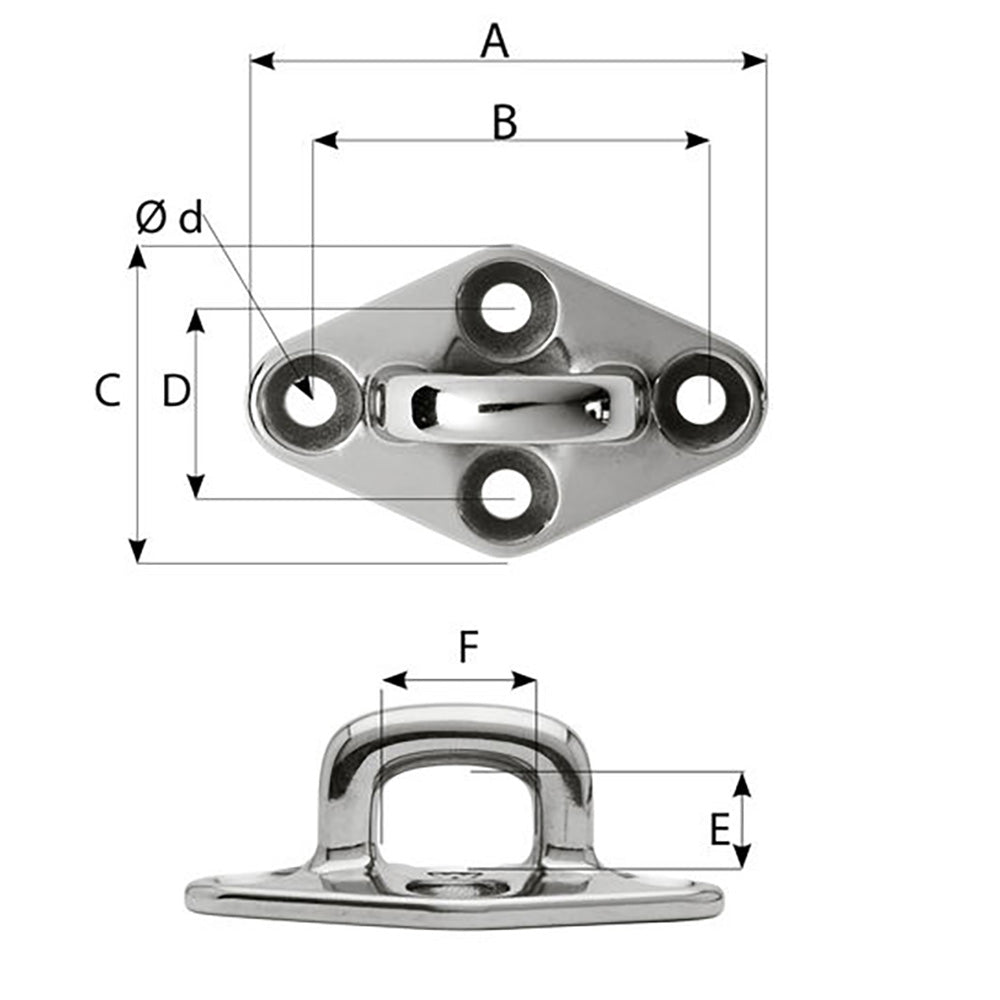

Dimensions:

A: (inch) 3 7/64" / (mm) 79
B: (inch) 2 23/64" / (mm) 60
C: (inch) 1 31/32" / (mm) 50
D: (inch) 1 17/64" / (mm) 32
E: (inch) 39/64" / (mm) 15.5
F: (inch) 55/64" / (mm) 22

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
